TDA1910

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
THD plus Noise : 0.2 %
Output Type : 1-Channel Mono
Product : Class-AB
Supply Current : 3.5 A
Maximum Power Dissipation : 20000 mW
Package / Case : Multiwatt-11
Operating Supply Voltage : 9 V, 12 V, 15 V, 18 V, 24 V, 28 V
Available Set Gain : 75 dB
Output Power : 17 W


Features:

    muting facility
    protection against chip over temperature
    very low noise
    high supply voltage rejection
    low "switch-on" noise.
`The TDA 1910 is assembled in MULTIWATT® package that offers:
    easy assembly
    simple heatsink

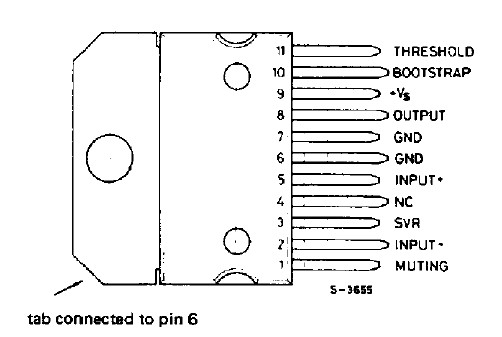

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Supply voltage	30	V
Io	Output peak current (non repetitive)	3.5	A
Io	Output peak current (repetitive)	3.0	A
Vi	Input voltage	0 to + Vs	V
Vi	Differential input voltage	±7	V
V11	Muting thresold voltage	Vs	V
Ptot	Power dissipation at Tcase = 90	20	W
Tstg, Tj	Storage and junction temperature	-40 to 150

Description

The TDA1910 is a monolithic integrated circuit in MULTIWATT[ package, intended for use in Hi-Fi audio power applications, as high quality TV sets. The TDA 1910 meets the DIN 45500 (d = 0.5%) guaranteed output power of 10W when used at 24V/4W. At 24V/8W the output power is 7W min.
