TDA21102

Mounting Style : SMD/SMT
Packaging : Reel
Product : MOSFET Gate Drivers
Type : Non-Inverting
Maximum Operating Temperature : + 150 C
Supply Voltage - Max : 13.2 V
Supply Voltage - Min : 10.8 V
Rise Time : 22 ns
Supply Current : 4.9 mA
Fall Time : 14 ns
Maximum Power Dissipation : 900 mW
Package / Case : PDSO-14


Features:

• Fast rise and fall times for frequencies up to 2 MHz
• Capable of sinking more than 4 A peak current for lowest switching losses
• Charges the High Side and Low Side MOSFET´s gate to 6..12 V according to PVCC setting.
• Adjustable High Side and Low Side MOSFET gate drive voltage via PVCC pin for optimizing ON losses and gate drive losses
• Integrates the bootstrap diode for reducing the part count
• Prevents from cross-conducting by adaptive gate drive control
• High voltage rating on Phase node
• Supports shut-down mode for very low quiescent current through three-state input
• Compatible to standard PWM controller ICs (Intersil, Analog Devices)
• Floating High Side MOSFET drive
• Ideal for multi-phase Desktop CPU supplies on motherboards and VRM´s

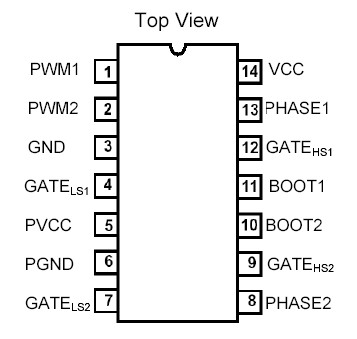

Pinout




Specifications

Parameter	Symbol	Value		Unit
		Min.	Max.
Voltage supplied to 'VCC' pin	VVCC	-0.3	25	V
Voltage supplied to 'PVCC' pin	VPVCC	-0.3	25
Voltage supplied to 'PWM' pin	VPWM	-0.3	5.5
Voltage supplied to 'BOOT' pin referenced to 'PHASE'	VBOOT VPHASE	-0.3	25
Voltage rating at 'PHASE' pin, DC	VPHASE	-1	25
Voltage rating at 'PHASE' pin, tpulse_max =500ns Max Duty Cycle = 2%		-20	30
Junction temperature	TJ	-25	150
Storage temperature	TS	-55	150
ESD Rating; Human Body Model			4	kV
IEC climatic category; DIN EN 60068-1		55/150/56		-

Description

The dual high speed driver of the TDA21102 is designed to drive a wide range of N-Channel low side and N-Channel high side MOSFETs with varying gate charges. It has a small propagation delay from input to output, short rise and fall times and the same pin configuration as the HIP6602B. In addition it provides several protection features as well as a shut down mode for efficiency reasons. The high breakdown voltage makes it suitable for mobile applications.



Parameters:

Technical/Catalog Information	TDA21102
Vendor	Infineon Technologies
Category	Integrated Circuits (ICs)
Package / Case	DSO-14
Mounting Type	Surface Mount
Type	High Side
Voltage - Supply	10.8 V ~ 13.2 V
On-State Resistance	-
Current - Output / Channel	4A
Current - Peak Output	4A
Packaging	Tape & Reel (TR)
Input Type	Non-Inverting
Number of Outputs	4
Operating Temperature	-25°C ~ 150°C
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA21102 TDA21102
