Product Details

Description



Features:

` Requires very few external components
` No switch-on/switch-off clicks
` Input mute during switch-on and switch-off
` Low offset voltage between output and ground
` Excellent gain balance of both amplifiers
` Hi-fi in accordance with "IEC 268" and "DIN 45500"
` Short-circuit proof and thermal protected
` Mute possibility.


Pinout

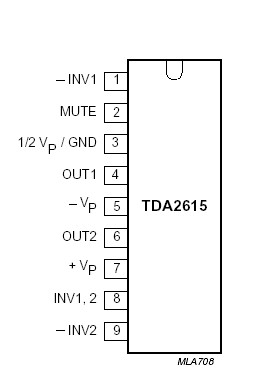

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
±VP supply voltage   - 21 V
IOSM non-repetitive peak output current   - 4 A
Ptot total power dissipation see Fig.3 - 15 W
Tstg storage temperature range   -55 +150
Txtal crystal temperature   - +150
Tamb ambient operating temperature range   -25 +150
tsc short-circuit time short-circuit to ground; note 1 - 1 h



Description

The TDA2615 is a dual power amplifier in a 9-lead plastic single-in-line (SIL9MPF) medium power package. It has been especially designed for mains fed applications, such as stereo radio and stereo TV.
