TDA2822M

Audio Amplifiers Dual Lo-Volt Pwr Amp

product image

TDA2822M Picture
SeekIC No. : 00306992 Detail

TDA2822M: Audio Amplifiers Dual Lo-Volt Pwr Amp

floor Price/Ceiling Price

US $ .56~.94 / Piece | Get Latest Price
Part Number:
TDA2822M
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $.94
  • $.77
  • $.65
  • $.56
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Class-AB Output Power : 2 W
Output Type : 1-Channel Mono or 2-Channel Stereo Available Set Gain : 39 dB
THD plus Noise : 0.2 % Operating Supply Voltage : 3 V, 5 V, 9 V, 12 V
Supply Current : 1 A Maximum Power Dissipation : 1400 mW
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : PDIP-8 Packaging : Tube

Description

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
THD plus Noise : 0.2 %
Product : Class-AB
Output Power : 2 W
Output Type : 1-Channel Mono or 2-Channel Stereo
Package / Case : PDIP-8
Available Set Gain : 39 dB
Operating Supply Voltage : 3 V, 5 V, 9 V, 12 V
Supply Current : 1 A
Maximum Power Dissipation : 1400 mW


Features:

*SUPPLYVOLTAGEDOWN TO 1.8V
*LOW CROSSOVERDISTORSION
*LOW QUIESCENTCURRENT
*BRIDGE ORSTEREOCONFIGURATION





Pinout

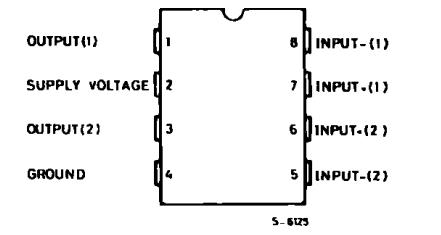

  Connection Diagram




Specifications

Symbol Parameter Value Unit
Vs Supply Voltage

case
Storage andJunction Temperature
15 V
Io Peak Output Current
Total Power
1 A
Ptot Total Power Dissipation at T =50 °C
amb =50°C at T case
1
1.4
W
W
Tstg Tj Storage andJunction Temperature 40, + 150 °C





Description

*TheTDA2822Misamonolithicintegratedcircuitin 8 lead Minidip package. It is intended for use as dual audio power amplifier in portable cassette playersandradios.

The TDA2822M is intended for use as dual audio power amplifier in portable cassette players and radios which is a kind of monolithic integrated circuit in 8 lead Minidip package. It If you want to know about this IC, please go to our website for more information.

The features of TDA2822M can be summarized as (1)supply voltage down to 1.8V; (2)low crossover distorsion; (3)low quiescent current; (4)bridge or stereo configuration.

The absolute maximum ratings of TDA2822M are (1)Vs supply voltage: 15 V; (2)Io peak output current: 1 A; (3)Ptot total power dissipation at Tamb = 50 °C/at Tcase = 50 °C: 1W/1.4W; (4)Tstg, Tj storage and junction temperature: ± 40, + 150 °C; (5)Rth j-amb thermal resistance junction-ambient Max.: 100 °C/W; (6)Rth j-case thermal resistance junction-pin (4) Max.: 70 °C/W.
