Product Details

Description



Features:

· Two comb filters, using the switched-capacitor technique, for one line delay time (64 ms)
· For PAL and NTSC
· Adjustment-free application
· Handles negative or positive colour-difference input signals
· Clamping of AC-coupled input signals [±(R-Y) and ±(B-Y)]
· VCO without external components
· 3 MHz internal clock signal derived from a 6 MHz CCO, line-locked by the sandcastle pulse (64 ms line)
· Sample-and-hold circuits and low-pass filters to suppress the 3 MHz clock signal
· Addition of delayed and non-delayed output signals
· Output buffer amplifiers
· Comb filtering functions for NTSC colour-difference signals to suppress cross-colour.

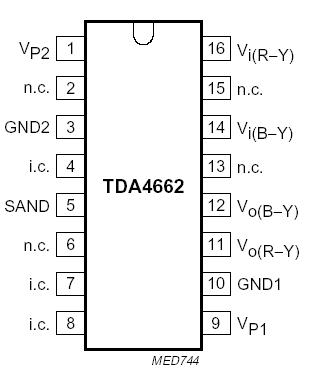

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP1 supply voltage (pin 9)   -0.5 +7 V
VP2 supply voltage (pin 1)   -0.5 +7 V
V5 input voltage on pin 5   -0.5 VP + 1.0 V
Vn voltage on pins 11, 12, 14 and 16   -0.5 VP V
Tstg storage temperature   -25 +150
Tamb operating ambient temperature   0 70
VESD electrostatic handling for all pins note 1 - ±500 V
Note
1. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.


Description

The TDA4662 is an integrated baseband delay line circuit with one line delay. It is suitable for PAL and NTSC decoders with colour-difference signal outputs ±(R-Y) and ±(B-Y).
