TDA4663T

Features: · Two delay lines, using the switched-capacitor technique, for a delay time of one horizontal line (1H) minus 55 ns (64 ms - 55 ns)· Adjustment-free application· Handles negative or positive colour-difference input signals· Clamping of AC-coupled input signals [mostly colour-difference s...

product image

TDA4663T Picture
See larger image
SeekIC No. : 004516367 Detail

TDA4663T: Features: · Two delay lines, using the switched-capacitor technique, for a delay time of one horizontal line (1H) minus 55 ns (64 ms - 55 ns)· Adjustment-free application· Handles negative or positi...

TDA4663T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA4663T
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Two delay lines, using the switched-capacitor technique, for a delay time of one horizontal line (1H) minus 55 ns (64 ms - 55 ns)
· Adjustment-free application
· Handles negative or positive colour-difference input signals
· Clamping of AC-coupled input signals [mostly colour-difference signals ±(R-Y) and ±(B-Y)]
· VCO without external components
· 3 MHz internal clock signal derived from a 6 MHz CCO, line-locked by the sandcastle pulse (64 ms line)
· Sample-and-hold circuits and low-pass filters to suppress the 3 MHz clock signal
· Output buffer amplifiers.


Pinout

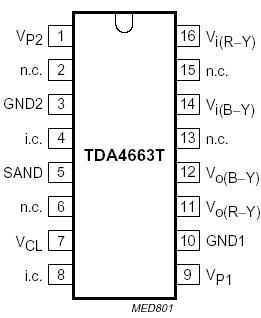

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VP1 supply voltage (pin 9)   -0.5 +7 V
VP2 supply voltage (pin 1)   -0.5 +7 V
V5 input voltage on pin 5   -0.5 VP + 1.0 V
Vn voltage on pins 11, 12, 14 and 16   -0.5 VP V
In current on pins 7, 11 and 12   - 20 mA
Tstg storage temperature   -25 +150
Tamb operating ambient temperature   -20 70
Ptot total power dissipation   - 100 mW
Ves electrostatic handling for all pins note 1 - ±500 V
Note
1. Equivalent to discharging a 200 pF capacitor through a 0 series resistor.


Description

The TDA4663T is an integrated baseband delay line circuit with a delay time of one horizontal line (1H) minus 55 ns (64 ms - 55 ns).
