TDA5102

Packaging : Reel
Type : Transmitter
Package / Case : TSSOP-16
Operating Supply Voltage : 2.5 V, 3.3 V
Operating Frequency : 925 MHz


Features:

·fully integrated frequency synthesizer
·VCO without external components
·high efficiency power amplifier
·frequency range 905-925 MHz
·ASK/FSK modulation
·low supply current (typically 7 mA)
·voltage supply range 2.1 - 4 V
·power down mode
·low voltage sensor
·selectable crystal oscillator 7.15 MHz/14.3 MHz
·programmable divided clock output for µC
·low external component count


Application

·Keyless entry systems
·Remote control systems
·Alarm systems
·Communication systems

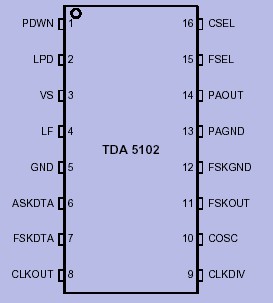

Pinout




Specifications

Parameter	Symbol	Limit Values		Unit	Remarks
		Min	Max
Junction Temperature	TJ	-40	150
Storage Temperature	Ts	-40	125
Thermal Resistance	RthJA		230	K/W
Supply voltage	VS	-0.3	4.0	V
ESD integrity, all pins	VESD	-1	+1	kV	100 pF, 1500 Ω
ESD integrity, pins 11 and 14 not tested	VESD	-2	+2	kV	100 pF, 1500 Ω

Description

The TDA 5102 is a single chip ASK/FSK transmitter for the frequency band 905- 925 MHz. The IC offers a high level of integration and needs only a few external components. The TDA 5102 contains a fully integrated PLL  synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features like a power down mode, a low power detect, a selectable crystal oscillator frequency and a divided clock output are implemented. The IC TDA 5102 can be used for both ASK and FSK modulation.



Parameters:

Technical/Catalog Information	TDA5102
Vendor	Infineon Technologies (VA)
Category	RF and RFID
Features	-
Package / Case	16-TSSOP
Packaging	Cut Tape (CT)
Applications	Alarm Systems, Communication Systems
Data Rate - Maximum	20 kbps
Frequency	915MHz
Modulation or Protocol	ASK, FSK
Current - Transmitting	7mA
Operating Temperature	-25°C ~ 85°C
Power - Output	5dBm
Voltage - Supply	2.1 V ~ 4 V
Memory Size	-
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA5102 TDA5102 TDA5102INCT ND TDA5102INCTND TDA5102INCT
