TDA5103A

Packaging : Reel
Type : Transmitter
Operating Supply Voltage : 2.5 V, 3.3 V
Package / Case : TSSOP-10
Operating Frequency : 347 MHz


Features:

·fully integrated frequency synthesizer
·VCO without external components
·high efficiency power amplifier
·frequency range 344-347 MHz
·ASK modulation
·low supply current (typically 7 mA)
·voltage supply range 2.1 - 4 V
·power down mode
·low voltage sensor
·clock output for µC
·low external component count


Application

·Keyless entry systems
·Remote control systems
·Alarm systems
·Communication systems

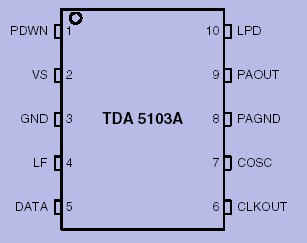

Pinout




Specifications

Parameter	Symbol	Limit Values		Unit	Remarks
		Min	Max
Junction Temperature	TJ	-40	150
Storage Temperature	Ts	-40	125
Thermal Resistance	RthJA		220	K/W
ESD integrity, all pins	VESD	-1	+1	kV	100pF, 1500

Description

The TDA 5103A is a single chip ASK transmitter for the frequency band 344- 347 MHz. The IC offers a high level of integration and needs only a few external components. The TDA 5103A contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A special circuit design and an unique power amplifier design are used to save current consumption and therefore to save battery life. Additional features of TDA 5103A like a power down mode, a low power detect and a divided clock output are implemented.



Parameters:

Technical/Catalog Information	TDA5103A
Vendor	Infineon Technologies
Category	RF and RFID
Features	-
Package / Case	10-TSSOP
Packaging	Tape & Reel (TR)
Applications	Alarm Systems, Communication Systems
Data Rate - Maximum	20 kbps
Frequency	345MHz
Modulation or Protocol	ASK, FSK
Current - Transmitting	7mA
Operating Temperature	-25°C ~ 85°C
Power - Output	5dBm
Voltage - Supply	2.1 V ~ 4 V
Memory Size	-
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA5103A TDA5103A TDA5103AINTR ND TDA5103AINTRND TDA5103AINTR
