TDA5212

Packaging : Reel
Type : Receiver
Package / Case : TSSOP-28
Operating Supply Voltage : 5 V
Operating Frequency : 928 MHz


Features:

·Low supply current (Is = 5.4 mA typ.FSK mode, 4.8 mA typ. ASK mode)
·Supply voltage range 5V ±10%
·Power down mode with very low supply current (90nA typ.)
·FSK and ASK demodulation capability
·Fully integrated VCO and PLL Synthesiser
·RF input sensitivity ASK -112dBm typ. at 25°C, better than -109dBm over
·complete specified operating temperature range (-40 to +85°C)
·RF input sensitivity FSK -105dBm typ. at 25°C, better than -102dBm over
·complete specified operating temperature range (-40 to +85°C)
·Receive frequency range between 910 and 920 MHz
·Selectable reference frequency
·Limiter with RSSI generation, operating at 10.7MHz
·2nd order low pass data filter with external capacitors
·Data slicer with self-adjusting threshold


Application

·Keyless Entry Systems
·Remote Control Systems
·Low Bitrate ISM-band Communication Systems

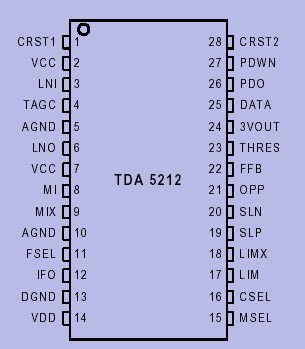

Pinout




Specifications

Parameter	Symbol	Limit Values		Unit	Remarks
		Min	Max
Supply Voltage	Vs	-0.3	5.8	V
Junction Temperature	TJ	-40	+125
Storage Temperature	Ts	-40	+150
Thermal Resistance	RthJA		114	K/W
ESD integrity, all pins	VESD	-1	+1	kV	HBM according to MIL STD 883D, method 3015.7

Description

The IC is a very low power consumption single chip FSK/ASK Superheterodyne Receiver (SHR) for receive frequencies between 910 and 920 MHz that is pin compatible to the ASK Receiver TDA5202. The IC offers a high level of integration and needs only a few external components. The TDA5202 contains a low noise amplifier (LNA), a double balanced mixer, a fully integrated VCO, a PLL synthesiser, a crystal oscillator, a limiter with RSSI generator, a PLL FSK demodulator, a data filter, a data comparator (slicer) and a peak detector. Additionally there is a power down feature to save battery life.



Parameters:

Technical/Catalog Information	TDA5212
Vendor	Infineon Technologies
Category	RF and RFID
Applications	RKE, Remote Control Systems
Current - Receiving	5.4mA
Features	-
Data Rate - Maximum	-
Operating Temperature	-40°C ~ 85°C
Package / Case	28-TSSOP
Packaging	Tape & Reel (TR)
Sensitivity	-109dBm
Modulation or Protocol	ASK, FSK
Voltage - Supply	4.5 V ~ 5.5 V
Frequency	902MHz ~ 928MHz
Memory Size	-
Data Interface	PCB, Surface Mount
Antenna Connector	PCB, Surface Mount
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA5212 TDA5212 TDA5212INTR ND TDA5212INTRND TDA5212INTR
