TDA7231A

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Output Type : 1-Channel Mono
THD plus Noise : 0.3 %
Product : Class-AB
Package / Case : PDIP-8
Supply Current : 1 mA
Maximum Power Dissipation : 4000 mW
Operating Supply Voltage : 3 V, 5 V, 9 V, 12 V
Available Set Gain : 38 dB
Output Power : 1.8 W


Features:

*OPERATING VOLTAGE1.8 TO 15 V
*LOW QUIESCENT CURRENT
*HIGH POWER CAPABILITY
*LOW CROSSOVER DISTORTION
*SOFT CLIPPING

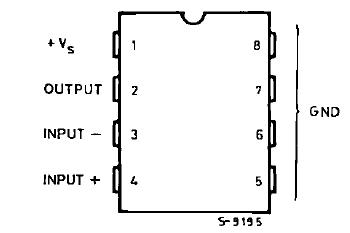

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Supply Voltage	16	V
Ptot	Total Power Dissipation at Tamb =50 °C at Tcase =70 °C	1.25 4	W W
Io	Output Peak Current	1	A
Tstg,Tj	Storage and Junction Temperature	40 to 150	°C

Description

*The TDA7231A is a monolithic integrated circuit in 4 + 4 lead minidip package. It is intended for use
   as class AB power amplifier with wide range ofsupply voltage in portable radios, cassette recorders
   and players, etc.
