TDA7233D

Common Mode Rejection Ratio (Min) :
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 150 C
Output Type : 1-Channel Mono
THD plus Noise : 0.3 %
Supply Current : 9 mA
Product : Class-AB
Package / Case : SO-8
Output Power : 1.9 W
Available Set Gain : 39 dB
Operating Supply Voltage : 3 V, 5 V, 9 V, 12 V
Maximum Power Dissipation : 1000 mW


Features:

OPERATING VOLTAGE 1.8 TO 15V
EXTERNAL MUTE OR POWER DOWN
FUNCTION
IMPROVED SUPPLY VOLTAGE REJECTION
LOW QUIESCENT CURRENT
HIGH POWER CAPABILITY
LOW CROSSOVER DISTORTION

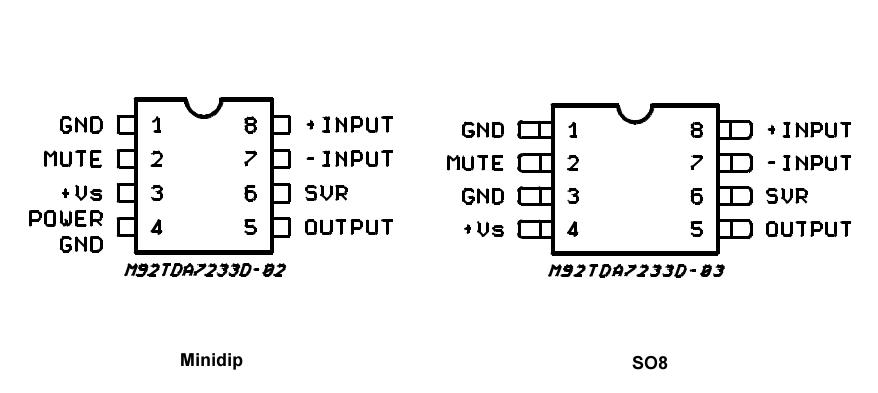

Pinout




Specifications

Symbo	Parameter	Value	Unit
VCC	Supply Voltage	7	V
Top	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature	-40 to 150	°C

Description

The TDA7233D is a monolithic integrated circuit in 8 pin Minidip or SO8 package, intended for use as class AB power amplifier with a wide range of
supply voltage from 1.8V to 15V in portable players, cordless telephones and Cellular Radios.
