TDA7235

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Output Type : 1-Channel Mono
THD plus Noise : 0.3 %
Product : Class-AB
Supply Current : 10 mA
Package / Case : PDIP-8
Maximum Power Dissipation : 4000 mW
Available Set Gain : 38 dB
Output Power : 1.8 W
Operating Supply Voltage : 3 V, 5 V, 9 V, 12 V, 15 V, 18 V


Features:

*OPERATINGVOLTAGE1.8 TO 24V
*LOWQUIESCENT CURRENT
*HIGH POWER CAPABILITY
*LOWCROSSOVER DISTORTION
*SOFT CLIPPING

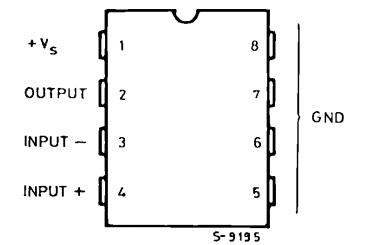

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	28	V
IO	Output Peak Current	1	A
Ptot	Total Power Dissipation Tamb =50°C Tcase =70°C	1.25 4	W W
Tstg,Tj	Storage and Junction Temperature	-40 to150	°C

Description

The TDA7235 is a monolithic integrated circuit in 4 +4 lead Minidip package, intended for use as class AB power amplifier with wide range of supply voltage in portable radios, cassette recorders and players, TV sets, etc..
