TDA7263M

Available Set Gain :
Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
Mounting Style : Through Hole
THD plus Noise : 0.02 %
Product : Class-AB
Package / Case : Multiwatt-11
Operating Supply Voltage : 12 V, 15 V, 18 V, 24 V, 28 V
Output Power : 12 W
Supply Current : 2 A
Maximum Power Dissipation : 30000 mW


Features:

*WIDE SUPPLY VOLTAGE RANGE
*HIGH OUTPUT POWER
   12+12W@VS=28V, RL =8Ω, THD=10%
*MUTE FACILITY (POP FREE) WITH LOW
 CONSUMPTION
*AC SHORT CIRCUIT PROTECTION
*THERMAL OVERLOAD PROTECTION

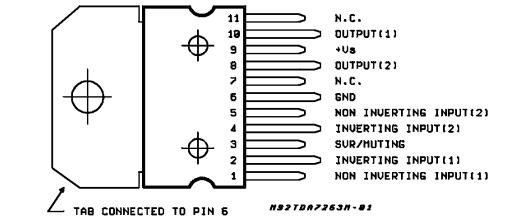

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	35	V
IO	Output Peak Current (repetitive f >20Hz)	2.5	A
IO	Output Peak Current (non repetitive, t = 100µs)	3.5	A
Ptot	Total Power Dissipation (Tcase =70°C)	25	W
Tamb	Operating Temperature Range	0 to 70	°C
Tstg, Tj	Storage and Junction Temperature	-40 to 150	°C

Description

*The TDA7263M is class AB dual audio power amplifier assembled in the Multiwatt package,
   specially designed for high quality sound application as HI-FI music centers and stereo TV sets.
