TDA7266D

Common Mode Rejection Ratio (Min) :
Supply Current :
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
THD plus Noise : 0.05 %
Product : Class-AB
Available Set Gain : 26 dB
Maximum Power Dissipation : 25000 mW
Output Power : 5 W
Operating Supply Voltage : 9.5 V
Package / Case : PowerSO-20


Features:

*WIDE SUPPLY VOLTAGE RANGE (3.5 - 12V)
* OUTPUT POWER
    5+5W @THD = 10%, RL = 8Ω, VCC = 9.5V
* SINGLE SUPPLY
* MINIMUM EXTERNAL COMPONENTS
   NO SVR CAPACITOR
    NO BOOTSTRAP
   NO BOUCHEROT CELLS
   INTERNALLY FIXED GAIN
* STAND-BY & MUTE FUNCTIONS
* SHORT CIRCUIT PROTECTION
*THERMAL OVERLOAD PROTECTION

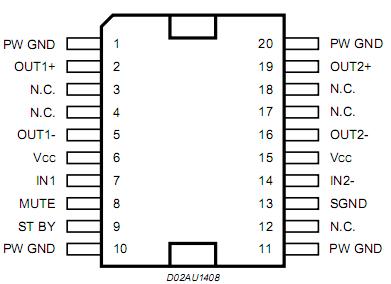

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	20	V
IO	Output Peak Current (internally limited)	1.5	A
Ptot	Total Power Dissipation (Tcase = 70°C)	25	A
Top	Operating Temperature	0 to 70	W   W
T stg,Tj	Storage and junction Temperature	-40 to 150	°C

Description

*The TDA7266D is a dual bridge amplifier specially
designed for LCD TV/Monitor, PC Motherboard, TV
and Portable Audio applications.


Parameters:

Technical/Catalog Information	TDA7266D
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	PowerSO-20 Exposed Bottom Pad
Type	Class AB
Output Type	2-Channel (Stereo)
Voltage - Supply	3.5 V ~ 12 V
Packaging	Tube
Features	Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	5W x 2 @ 8 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7266D TDA7266D 497 4024 5 ND 49740245ND 497-4024-5
