TDA7268

Maximum Power Dissipation :
Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 70 C
THD plus Noise : 0.1 %
Output Type : 2-Channel Stereo
Mounting Style : Through Hole
Product : Class-AB
Output Power : 2 W
Available Set Gain : 32 dB
Package / Case : PDIP-16
Supply Current : 1.5 A
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V


Features:

WIDE OPERATING RANGE FROM 4.5V TO 18V
P_OUT  =  2W  @ THD 10% 12V/8
INTERNAL FIXED GAIN 32dB
NO FEEDBACK CAPACITOR
NO BOUCHEROT CELL
THERMAL PROTECTION
AC SHORT CIRCUIT PROTECTION
SVR CAPACITOR FOR BETTER RIPPLE
REJECTION
LOW TURN-ON/OFF POP
VERY FEW EXTERNAL COMPONENTS
STAND-BY MODE (I_ST-BY  < 300 A)

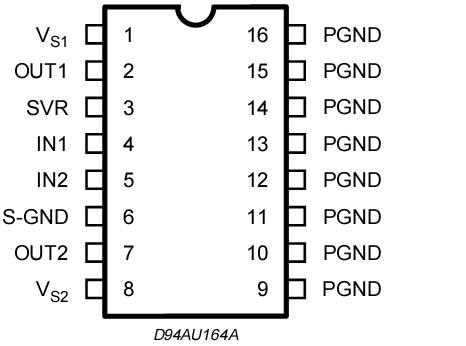

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	18	V
IO	Output Peak Current	1.5	A
Top	Operating Temperature Range	0 to 70	°C
Tj	Junction Temperature	150	°C
Tstg	Storage Temperature Range	-40 to 125	°C

Description

The device TDA7268 is a new technology stereo Audio Amplifier in DIP package specially de-signed for TV  application.
Thanks to the fully complementary output configuration the device delivers a rail to rail voltage swing without need of boostrap capacitor.


Parameters:

Technical/Catalog Information	TDA7268
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	16-DIP (300 mil)
Type	Class AB
Output Type	2-Channel (Stereo)
Voltage - Supply	4.5 V ~ 18 V
Packaging	Tube
Features	Depop, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	2W x 2 @ 8 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7268 TDA7268 497 3963 5 ND 49739635ND 497-3963-5
