TDA7294V

Audio Amplifiers 100W Audio Amplifier

product image

TDA7294V Picture
SeekIC No. : 00306648 Detail

TDA7294V: Audio Amplifiers 100W Audio Amplifier

floor Price/Ceiling Price

US $ 2.41~3.66 / Piece | Get Latest Price
Part Number:
TDA7294V
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $3.66
  • $2.97
  • $2.68
  • $2.41
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/1

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : Class-AB Output Power : 100 W
Output Type : 1-Channel Mono Available Set Gain : 80 dB
THD plus Noise : 0.01 % Operating Supply Voltage : 50 V
Supply Current : 65 mA Maximum Power Dissipation : 50000 mW
Maximum Operating Temperature : + 70 C Mounting Style : Through Hole
Package / Case : Multiwatt-15 Packaging : Tube

Description

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 70 C
THD plus Noise : 0.01 %
Mounting Style : Through Hole
Output Power : 100 W
Output Type : 1-Channel Mono
Product : Class-AB
Supply Current : 65 mA
Available Set Gain : 80 dB
Maximum Power Dissipation : 50000 mW
Package / Case : Multiwatt-15
Operating Supply Voltage : 50 V


Features:

.VERY HIGH OPERATING VOLTAGE RANGE(±40V)
.DMOS POWER STAGE
.HIGH OUTPUT POWER (UP TO 100W MUSIC POWER)
.MUTING/STAND-BY FUNCTIONS
.NO SWITCH ON/OFF NOISE
.NO BOUCHEROT CELLS
.VERYLOW DISTORTION
.VERYLOW NOISE
.SHORT CIRCUIT PROTECTION
.THERMAL SHUTDOWN

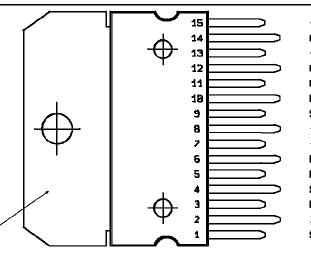

Pinout

  Connection Diagram


Specifications

Symbol Parameter Value Unit
VS Supply Voltage (No Signal) ±50 V
IO Output Peak Current 10 A
Ptot Power Dissipation Tcase= 70°C 50 W
Top Operating Ambient Temperature Range 0 to 70 °C
Tstg, Tj Storage and Junction Temperature 150 °C



Description

  The TDA7294V is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, TopclassTV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4W and 8W loads even in presence of poor supply regulation, with high Supply Voltage Rejection.

   The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.


Parameters:

Technical/Catalog InformationTDA7294V
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CaseMultiwatt-15 (Vertical, Bent and Staggered Leads)
TypeClass AB
Output Type1-Channel (Mono)
Voltage - Supply±10 V ~ 40 V
PackagingTube
FeaturesDepop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load100W x 1 @ 8 Ohm
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names TDA7294V
TDA7294V
497 2171 5 ND
49721715ND
497-2171-5
