TDA7296

Common Mode Rejection Ratio (Min) :
Operating Supply Voltage :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 70 C
THD plus Noise : 0.01 %
Mounting Style : Through Hole
Output Power : 60 W
Output Type : 1-Channel Mono
Product : Class-AB
Available Set Gain : 80 dB
Maximum Power Dissipation : 50000 mW
Package / Case : Multiwatt-15


Features:

VERY HIGH OPERATING VOLTAGE RANGE(±35V)
DMOS POWER STAGE
HIGH OUTPUT POWER (UP TO 60W MUSIC POWER)
MUTING/STAND-BY FUNCTIONS
NO SWITCH ON/OFF NOISE
NO BOUCHEROT CELLS
VERYLOW DISTORTION
VERYLOW NOISE
SHORT CIRCUIT PROTECTION
THERMAL SHUTDOWN

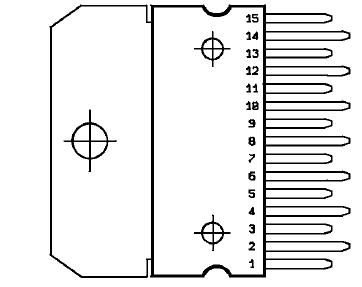

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Supply Voltage	±35	V
IO	Output Peak Current	5	A
Ptot	Power Dissipation Tcase= 70°C	50	W
Top	Operating Temperature Range	0 to +70	°C
Tstg, Tj	Storage and Junction Temperature	150	°C

Description

  The TDA7296 is a monolithic integrated circuit in Multiwatt15 package, intended for use as audio class AB amplifier in Hi-Fi field applications (Home Stereo, self powered loudspeakers, Topclass TV). Thanks to the wide voltage range and to the high out current capability it is able to supply the highest power into both 4W and 8W loads even in presence of poor supply regulation, with high Supply Voltage Rejection.
  The built in muting function with turn on delay simplifies the remote operation avoiding switching on-off noises.



Parameters:

Technical/Catalog Information	TDA7296
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Type	Class AB
Output Type	1-Channel (Mono)
Voltage - Supply	±10 V ~ 35 V
Packaging	Tube
Features	Depop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	60W x 1 @ 8 Ohm
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA7296 TDA7296 497 3966 5 ND 49739665ND 497-3966-5
