TDA7299

Common Mode Rejection Ratio (Min) :
Maximum Power Dissipation :
Mounting Style : SMD/SMT
Packaging : Tube
Maximum Operating Temperature : + 70 C
Output Type : 1-Channel Mono
Product : Class-AB
Output Power : 2 W
THD plus Noise : 1 %
Available Set Gain : 20 dB
Package / Case : SO-8
Supply Current : 30 mA
Operating Supply Voltage : 5 V, 9 V, 12 V, 15 V

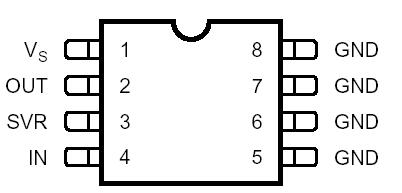

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	18	V
IO	Output Put Peak Current	1.5	A
Top	Operating Temperature Range	0 to 70	°C
Tj	Junction Temperature	150	°C
Tstg	Storage Temperature Range	-40 to 125	°C

Description

The device TDA7299 is a new technology Mono Audio Amplifier in SO package specially designed for 12V sound cards application.

Thanks to the fully complementary output configuration the device delivers a rail voltage swing without need of boostrap capacitors.
