TDA7385

Common Mode Rejection Ratio (Min) :
Supply Current :
Packaging : Tube
Maximum Operating Temperature : + 150 C
Mounting Style : Through Hole
Product : Class-AB
Operating Supply Voltage : 18 V
THD plus Noise : 0.04 %
Output Power : 35 W
Output Type : 4-Channel Stereo
Available Set Gain : 26 dB
Maximum Power Dissipation : 80000 mW
Package / Case : FLEXIWATT-25


Features:

*HIGH OUTPUT POWER CAPABILITY:
4 x35W/4 MAX.
4 x30W/4 EIAJ
4 x22W/4 @14.4V,1KHz,10%
4 x18.5W/4 @ 13.2V,1KHz, 10%
*CLIPPING DETECTOR
*LOW DISTORTION
*LOW OUTPUT NOISE
*ST-BY FUNCTION
*MUTE FUNCTION
*AUTOMUTE AT MIN.SUPPLY VOL TAGE DETECTION
*DIAGNOSTICS FACILITY FOR:
CLIPPING
OUT TO GND SHORT
OUT TO V_S SHORT
THERMAL SHUTDOWN
*LOW EXTERNAL COMPONENT COUNT:
INTERNALLY FIXEDGAIN(26dB)
NO EXTERNAL COMPENSATION
NO BOOTSTRAP CAPACITORS

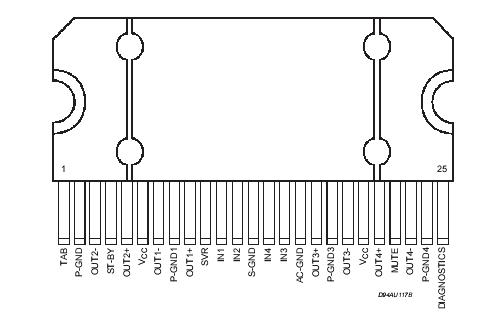

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCC	Operating Supply Voltage	18	V
VCC(DC)	DC Supply Voltage	28	V
VCC(pk)	Peak Supply Voltage (t= 50ms)	50	V
IO	Output Peak Current:
	Repetitive (Duty Cycle 10% at f= 10Hz)	4.5	A
	Non Repetitive(t = 100s)	5.5	A
Ptot	Power dissipation, (Tcase =70)	80	W
Tj	Junction Temperature	150
Tstg	Storage Temperature	55 to150

Description

The TDA7385 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package

Thanks to the fully complementary PNP/NPN output configuration the TDA7385 allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compactsets.

The on-board clipping detector simplifies gain compression operations. The fault diagnostics makes it possible to detect mistakes during Car-Radio assemblyand wiring in the car.

Parameters:

Technical/Catalog Information	TDA7385
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	25-Flexiwatt (bent and staggered leads)
Type	Class AB
Output Type	4-Channel (Quad)
Voltage - Supply	8 V ~ 18 V
Packaging	Tube
Features	Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	35W x 4 @ 4 Ohm
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA7385 TDA7385 497 2174 5 ND 49721745ND 497-2174-5
