TDA7407

Operating Supply Voltage :
Supply Current :
Mounting Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Packaging : Tray
Package / Case : LQFP-44


Features:

*FULLY INTEGRATED SIGNAL PROCESSOR
OPTIMIZED FOR CAR RADIO APPLICATIONS
*FULLY PROGRAMMABLE BY I² C BUS
*INCLUDES  AUDIOPROCESSOR, STEREO -
DECODER WITH NOISE BLANKER  AND
MULTIPATH  DETECTOR
*SOFTMUTE  FUNCTION
*PROGRAMMABLE ROLL-OFF COMPENSATION
*NO EXTERNAL COMPONENTS

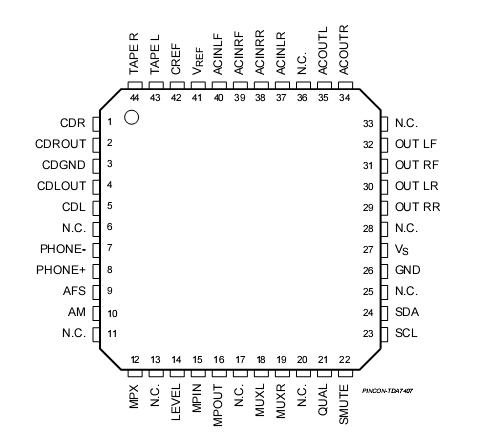

Pinout




Specifications

Symbol	Parameter	Value	Unit
Vs	Operating Supply Voltage	10.5	V
Tamb	Operating Temperature Range	-40 to 85	°C
Tstg	Storage Temperature Range	-55 to +150	°C

Description

The TDA7407 is the newcomer of the CSP family introduced by TDA7460/61. It uses the same innovative concepts and design technologies allowing fully software programmability through I ²C bus and overall cost optimisation for the system
designer.
The TDA7407 includes a three band audio processor with configurable inputs and absence of external components for filter settings, a last generation stereode coder with multipath detector and a sophisticated stereoblend and noise cancellation
circuitry.
Strength points of the CSP approach of the TDA7407 are flexibility and overall cost/room saving in the application, combined with high performances.


Parameters:

Technical/Catalog Information	TDA7407
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	44-LQFP
Type	Car Signal Processor
Packaging	Tray
Applications	Automotive Audio
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	TDA7407 TDA7407 497 3979 ND 4973979ND 497-3979
