TDA7449L

Operating Supply Voltage :
Supply Current :
Operating Temperature Range :
Packaging : Tube
Mounting Style : Through Hole
Package / Case : PDIP-20


Features:

*INPUT MUL TIPLEXER
- 2 STEREO INPUTS
- SELECTABLE INPUT GAIN FOR OPTIMAL
ADAPTATION TO DIFFERENT SOURCES
*ONE STEREO OUTPUT
*VOLUME CONTROL IN1.0dB STEPS
*TWO SPEAKER ATTENUATORS:
- TWO INDEPENDENT SPEAKER CONTROL
IN 1.0dBS TEPS FOR BALANCE FACILITY
- INDEPENDENT MUTE FUNCTION
ALL FUNCTION ARE PROGRAMMABLE VIA
SERIAL BUS

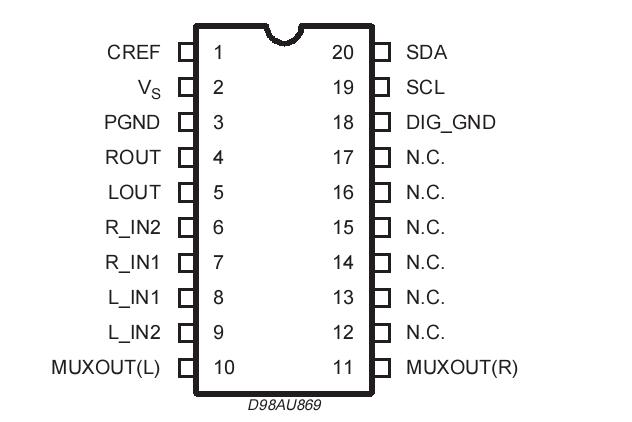

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	Operating Supply Voltage	10.5	V
Tamb	Operating Ambient Temperature	-10 to 85	°C
Tstg	Storage Temperature Range	-55 to 150	°C

Description

The TDA7449L is a volume control and balance (Left/Right) processor for quality audio applica-
tionsin TVsystems.
Selectable input gain is provided. Control of all thefunctionsis accomplishedby serialbus.
The TDA7449L AC signal setting is obtained by resistor net-works and switches combined with operational amplifiers.
Thanksto theusedBIPOLAR/CMOSTechnology,
Low Distortion, Low Noise and DC stepping are obtained.
