TDA7499

Common Mode Rejection Ratio (Min) :
Packaging : Tube
Maximum Operating Temperature : + 70 C
Output Type : 2-Channel Stereo
Output Power : 10 W
Mounting Style : Through Hole
THD plus Noise : 0.2 %
Product : Class-AB
Package / Case : Multiwatt-11
Operating Supply Voltage : 12 V, 15 V, 18 V, 24 V, 28 V
Available Set Gain : 80 dB
Supply Current : 2.5 A
Maximum Power Dissipation : 23000 mW


Features:

`WIDE SUPPLY VOLTAGE RANGE UP TO ±18V
`6 + 6W@ THD =10%, R_L = 8, V_S = +14V
`NO POPAT TURN-ON/OFF
`MUTE (POP FREE)
`STAND-BY FEATURE (LOW I<sub>q</sub>)
`SHORT CIRCUIT PROTECTION TO GND
`THERMAL OVERLOAD PROTECTION

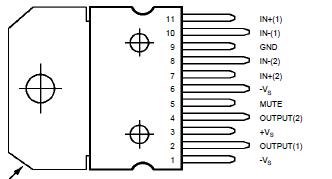

Pinout




Specifications

Symbol	Parameter	Value	Unit
VS	DC Supply Voltage	±20	V
IO	DC Supply Voltage	2.5	A
Ptot	Power Dissipation Tcase= 70°C	23	W
Top	Operating Temperature	0 to 70
Tstg, Tj	Storage and Junction Temperature	-40 to +150



Description

The TDA7499 is class AB dual Audio power amplifier assembled in the Multiwatt package, specially designed for high quality sound application as Hi-Fi music centers and stereo TV sets.

Parameters:

Technical/Catalog Information	TDA7499
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	Multiwatt-15 (Vertical, Bent and Staggered Leads)
Type	Class AB
Output Type	2-Channel (Stereo)
Voltage - Supply	10 V ~ 36 V, ±5 V ~ 18 V
Packaging	Tube
Features	Depop, Mute, Short-Circuit and Thermal Protection, Standby
Max Output Power x Channels @ Load	10W x 2 @ 8 Ohm
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TDA7499 TDA7499
