TDA8145: Video ICs East/West Correction

TDA8145 Data Sheet

Get Latest Price

Part Number:: TDA8145
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TDA8000 evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8000T evaluate
Features: · Two protected I/O lines· VCC regulation (5 V ±4%, 100 mA max. with controlled rise and...
TDA8001 evaluate
Features: · Protected I/O line· VCC regulation (5 V ±5%, 100 mA max. with controlled rise and fall...

Product Details

Quick Details

Operating Supply Voltage :	30 V	Supply Current :	7 mA
Maximum Operating Temperature :	70 C	Package / Case :	PDIP-8
Packaging :	Tube

Description

Packaging : Tube
Maximum Operating Temperature : 70 C
Package / Case : PDIP-8
Operating Supply Voltage : 30 V
Supply Current : 7 mA

Features:

.LOW DISSIPATION
·SQUARE GENERATOR FOR PARABOLIC CURRENT SPECIALLY DESIGNED FOR SQUARE C.R.T. CORRECTION
·EXTERNAL KEYSTONE ADJUSTMENT (symmetry of the parabola)
·INPUT FOR DYNAMIC FIELD CORRECTION (beam current change)
.STATIC PICTURE WIDTH ADJUSTMENT
.PULSE-WIDTH MODULATOR
·FINAL STAGE D-CLASS WITH ENERGY REDELIVERY
·PARASITIC PARABOLA SUPPRESSION,DURING FLYBACK TIME OF THE
VERTICAL SAWTOOTH

Pinout

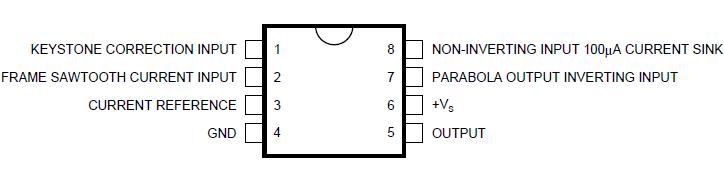

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_s	Supply Voltage	35	V
I_s	Supply Current	500	mA
P_tot	Power Dissipation at T_amb =50	500	mW
T_stg, T_j	Storage and Junction Temperature	25 to 150

Description

The TDA8145 is a monolithic integrated circuit in a 8 pin minidip plastic package designed for use in the square C.R.T. east-west pin-cushion correction by driving a diode modulator in TV and monitor applications.
