Product Details

Description



Features:

· Video switch with 2 CVBS inputs. One input can be switched between CVBS and Y/C and the circuit
    can  automatically detect whether the incoming signal is CVBS or Y/C
· Integrated chrominance trap and bandpass filters (automatically calibrated)
· Integrated luminance delay line
· Automatic PAL/NTSC decoder which can decode all standards available in the world
· Easy interfacing with the TDA8395 (SECAM decoder) for multistandard applications
· Horizontal PLL with an alignment-free horizontal oscillator
· Vertical count-down circuit
· RGB/YUV and fast blanking switch with 3-state output and active clamping
· Low dissipation (560 mW)
· Small amount of peripheral components compared with competition ICs.



Application

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.




Pinout

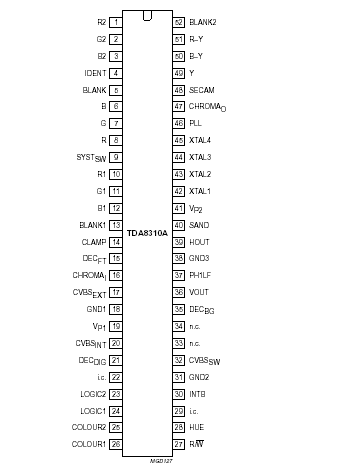

  Connection Diagram


Specifications

SYMBOL
PARAMETER
MIN.
MAX.
UNIT
VP
supply voltage
-
9.0
V
Tstg
storage temperature
-25
+150
Tamb
operating ambient temperature
-25
+70
Tsld
soldering temperature for 5 s
-
260
Tj
maximum operating junction temperature
-
150
.



Description

The TDA8310A is an alignment-free PAL/NTSC colour processor for Picture-in-Picture (PIP) applications. The main difference between the TDA8310 and the TDA8310A is that the vision IF amplifier has been omitted in the TDA8310A. Therefore, the circuit contains an input signal selector, a PAL/NTSC colour decoder, horizontal and vertical synchronization and an RGB/YUV switch.

The input signal selector has 2 CVBS inputs. One of the inputs can be switched between CVBS and Y/C and the circuit can automatically detect whether the incoming signal is CVBS or Y/C. The output signals for the PIP processor are;

       Luminance signal
      Colour difference signals (U and V)
      Horizontal and vertical synchronization pulses.

The RGB/YUV switch can select between two RGB or YUV sources, e.g. between the PIP processor and the SCART input signal.

The supply voltage for the IC is 8 V. It is available in a 52-pin SDIP package.
