TDA8764

Features: * 10-bit resolution (binary or gray code)* Sampling rate up to 40 MHz (/4 version) Sampling rate up to 80 MHz (/8 version)* DC sampling allowed* One clock cycle conversion only* High signal-to-noise ratio over a large analog input frequency range (9.5 effective bits at 5 MHz; full-scale ...

product image

TDA8764 Picture
See larger image
SeekIC No. : 004516837 Detail

TDA8764: Features: * 10-bit resolution (binary or gray code)* Sampling rate up to 40 MHz (/4 version) Sampling rate up to 80 MHz (/8 version)* DC sampling allowed* One clock cycle conversion only* High signa...

TDA8764 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8764
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

* 10-bit resolution (binary or gray code)
* Sampling rate up to 40 MHz (/4 version) Sampling rate up to 80 MHz (/8 version)
* DC sampling allowed
* One clock cycle conversion only
* High signal-to-noise ratio over a large analog input frequency range (9.5 effective bits at 5 MHz; full-scale input at fclk = 40 MHz)
* No missing codes guaranteed
* In-Range (IR) CMOS output
* TTL and CMOS levels compatible digital inputs
* 2.7 to 3.6 V CMOS digital outputs
* Low-level AC clock input signal allowed
* Internal reference voltage regulator
* Power dissipation only 250 mW (typical for /4 version) Power dissipation only 375 mW (typical for /8 version)
* Low analog input capacitance, no buffer amplifier required
* No sample-and-hold circuit required.


Application

High-speed analog-to-digital conversion for:
  Video data digitizing
  Radar pulse analysis
  Transient signal analysis
  High energy physics research
  modulators
  Medical imaging.


Pinout

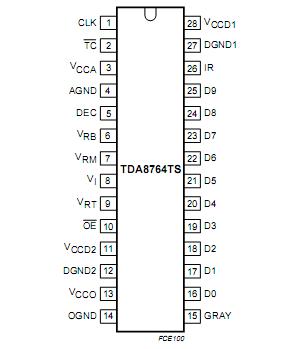

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCCA analog supply voltage note1 -0.3 +7.0 V
VCCD digital supply voltage note1 -0.3 +7.0 V
VCCO output stages supply voltage note1 -0.3 +7.0 V
VCC

supply voltage difference
VCCA VCCD
VCCA VCCO
VCCD VCCO

   -1.0
-1.0
-1.0		 +1.0
+4.0
+4.0
 V
VI input voltage referenced to AGND -0.3 +7.0 V
Vi(sw)(p-p) AC input voltage for switching (peak-to-peak value) referenced to DGND - V
CCD		 v
IO output current   - 10 mA
Tstg storage temperature   -55 +150
Tamb operating ambient temperature   44 +85
Tj junction temperature   - 150



Description

The TDA8764 is a 10-bit high-speed low-power Analog-to-Digital Converter (ADC) for professional videoand other applications. It converts the analog input signal into 10-bit binary or gray coded digital words at a maximumsampling rate of 40 MHz (/4 version) and 80 MHz(/8 version). All digital inputs and outputs are TTLcompatible, although a low-level sine wave clock inputsignal is allowed.The device includes an internal voltage reference regulator.
