TDA8766

Features: · 10-bit resolution· 3.0 to 5.25 V operation· Sampling rate up to 20 MHz· DC sampling allowed· High signal-to-noise ratio over a large analog input frequency range (9.3 effective bits at 1.0 MHz; full-scale input at fclk = 20 MHz)· In-Range (IR) CMOS output· CMOS/TTL compatible digital i...

product image

TDA8766 Picture
See larger image
SeekIC No. : 004516841 Detail

TDA8766: Features: · 10-bit resolution· 3.0 to 5.25 V operation· Sampling rate up to 20 MHz· DC sampling allowed· High signal-to-noise ratio over a large analog input frequency range (9.3 effective bits at 1...

TDA8766 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDA8766
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 10-bit resolution
· 3.0 to 5.25 V operation
· Sampling rate up to 20 MHz
· DC sampling allowed
· High signal-to-noise ratio over a large analog input frequency range (9.3 effective bits at 1.0 MHz; full-scale input at fclk = 20 MHz)
· In-Range (IR) CMOS output
· CMOS/TTL compatible digital inputs and outputs
· External reference voltage regulator
· Power dissipation only 53 mW (typical value)
· Low analog input capacitance, no buffer amplifier required
· Standby mode
· No sample-and-hold circuit required.


Application

High-speed analog-to-digital conversion for:
· Video data digitizing
· Camera
· Camcorder
· Radio communication.


Pinout

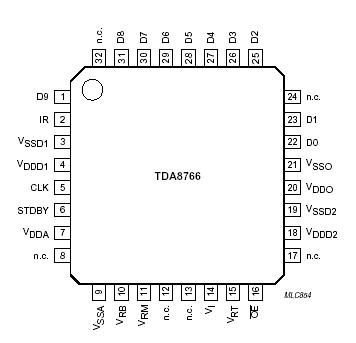

Connection Diagram


Specifications

Symbol Parameter Conditions Min Typ Max Unit
VCCA analog supply voltage   3.0 3.3 5.25 V
VDDD1 digital supply voltage 1   3.0 3.3 5.25 V
VDDD2 digital supply voltage 2   3.0 3.3 5.25 V
VDDO output stages supply voltage   3.0 3.3 5.25 V
IDDA analog supply current     7.5 10 mA
IDDD digital supply current     7.5 10 mA
IDDO output stages supply current fclk = 20 MHz; CL = 20 pF; ramp
input		   1 2 mA
INL integral non-linearity fclk = 20 MHz; ramp input   ±1 ±2 LSB
DNL differential non-linearity
 fclk = 20 MHz; ramp input   ±0.25 ±0.7 LSB
fCLK(max) maximum clock frequency   20
MHz
Ptot total power dissipation VDDA = VDDD = VDDO = 3.3 V   53 73 mW



Description

The TDA8766 is a 10-bit high-speed Analog-to-Digital Converter (ADC) for professional video and other applications. It converts with 3.0 to 5.25 V operation the analog input signal into 10-bit binary-coded digital words at a maximum sampling rate of 20 MHz. All digital inputs and outputs are CMOS compatible. A standby mode allows reduction of the device power consumption down to 4 mW.
