Product Details

Description



Pinout

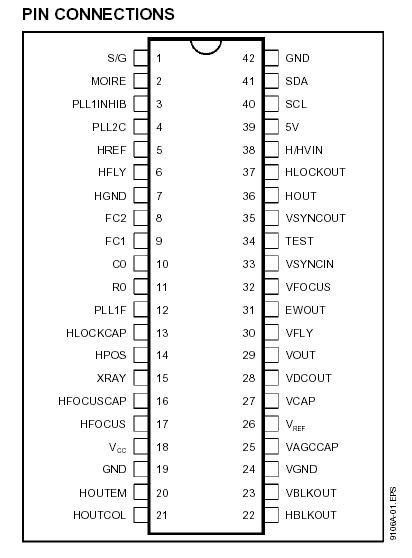

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCC Supply Voltage (Pin 18) 13.5 V
VDD Supply Voltage (Pin 39) 5.7 V
VIN
Max Voltage on Pin 6
Pins 15, 21, 22, 23
Pin 1
Pin 4
Pins 3, 33,34,37,38,40,41
Pin 16
Pins 8, 9, 10, 11, 12, 13, 14, 25, 27, 30

1.8
12
3.6
4
5
6
8

 V
V
V
V
V
v
v
VESD ESD susceptibility
Human Body Model,100pF Discharge through 1.5k
EIAJ Norm,200pF Discharge through 0
 2
300		 kv
V
Tstg Storage Temperature -40, +150 °C
Tj Junction Temperature +150 °C
Toper Operating Temperature 0, +70 °C



Description

DESCRIPTION
  The TDA9106A is a monolithic integrated circuit assembled in 42 pins shrunk dual in line plastic package.This IC controls all the functionsrelated to the horizontal and vertical deflection in multimodes or multi-frequencycomputer display monitors.

  The internalsyncprocessor,combinedwiththevery powerful geometry correction block are making the TDA9106Asuitablefor very highperformancemonitors with very few external components. It is particularly well suited for high-end15" and 17" monitors.
