Product Details

Description



Features:

Supply voltage 5to8V
Source selector
Stereo matrix
AFinput for mono source
AFoutputs for Main
LEDoperation mode indication (stereo and dual)
High identification reliability.

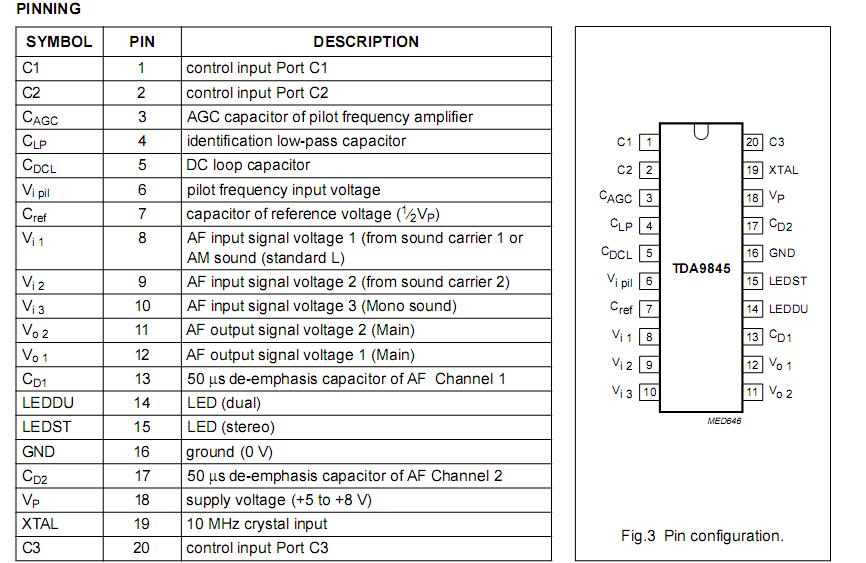

Pinout

  Connection Diagram


Specifications

SYMBO PARAMETER CONDITIONS MIN. MAX. UNIT
VP supply voltage (pin18) -0.3 10 V
Vn voltage at pins 1and20   -0.3 5.5
V
V
i
voltage at pins 2to15, 17and19   -0.3 VP V
Tstg storage temperature   -25 +150 °C
Tamb operating ambient temperature   0 +70 °C
Ves electrostatic handling for all pins note1 +500 -500 V



Description

   The TDA9845 is a stereo/dual sound processor for TV and VTR sets. Its identification ensures safe operation by using internal digital PLL technique with extremely small bandwidth, synchronous detection and digital integratio (switching time maximum 2.1s; identification concerning the main functions).
