Product Details

Description

Features:

· Quasi alignment-free BTSC stereo decoder due to
automatic adjustment of channel separation via I2C-bus
· High integration level with automatically tuned integrated filters
· Input level adjustment I2C-bus controlled
· Alignment-free SAP processing
· dbx noise reduction circuit
· I²C-bus transceiver.

Pinout

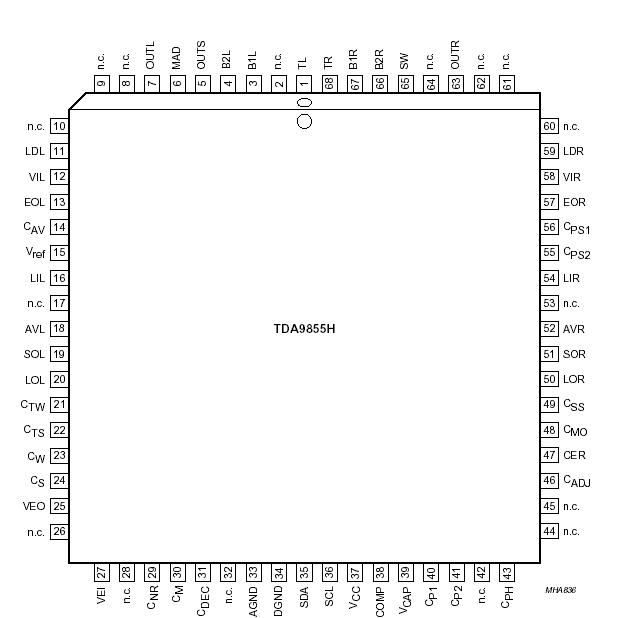

Connection Diagram

Specifications

SYMBOL	PARAMETER	CONDITIONS	MIN.	MAX.	UNIT
V_CC	supply voltage		0	9.5	V
V_n	voltage of all other pins to pin V_CC		0	V_CC	V
T_amb	operating ambient temperature		-20	+70	°C
T_stg	storage temperature		-65	+150	°C
V_es	electrostatic handling; note 1	note 1	-2000	+2000	V
V_es	electrostatic handling; note 1	note 2	-300	+300	V

Description

The TDA9855 is a bipolar-integrated BTSC stereo/SAP decoder with hi-fi audio processor (I2C-bus controlled) for application in TV sets.
