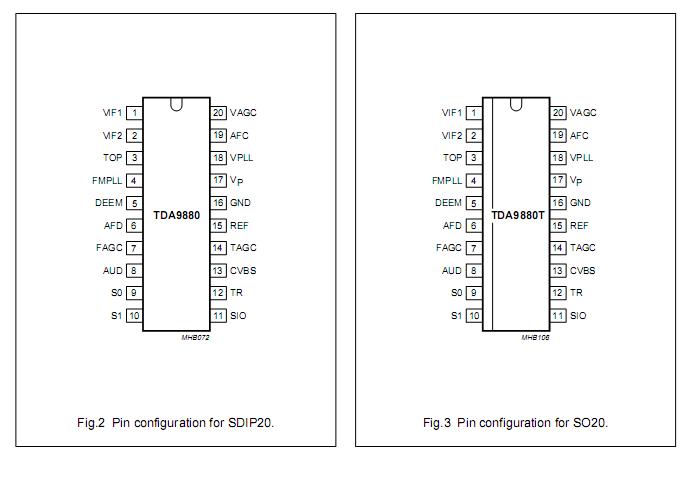

TDA9880

5V supply voltage
Gain controlled wide-band Vision Intermediate
Frequency (VIF) amplifier (AC-coupled)
True synchronous demodulation with active carrier
regeneration (very linear demodulation, good
intermodulation figures, reduced harmonics and excellent pulse response)
Fully integrated VIF Voltage Controlled Oscillator (VCO), alignment-free
Digital acquisition help, VIF frequencies of 38.0,38.9,
45.75and 58.75MHz
4MHz reference frequency input [signal from
Phase-Locked Loop (PLL) tuning system] or operating as crystal oscillator
VIF Automatic Gain Control (AGC) detector for gain
control, operating as peak sync detector, fast reaction time
PrecisefullydigitalAutomaticFrequencyControl(AFC)
detector with 4-bit digital-to-analog converter
Fully integrated sound carrier trap for 4.5,5.5,
6.0and6.5MHz, controlled by reference signal
Alignment-freeselectiveFM-PLLdemodulatorwithhigh linearity and low noise
Digital frequency control, sound carrier frequencies
4.5,5.5,6.0and6.5MHz
Stabilizer circuit for ripple rejection and to achieve
constant output signals
Electrostatic discharge (ESD) protection for all pins.

  The TDA9880(T) is an integrated circuit for multistandard vision IF signal processing and FM demodulation in TV and VTR sets.
