Features:

·  5 V supply voltage
·  I2C-bus control over all functions
·  Four I2C-bus addresses provided; selection by programmable Module Address (MAD)
·  Three I2C-bus voltage level supported; selection via pin BVS
·  Separate gain controlled amplifiers with input selector and conversion for incoming IF
   [analog Vision IF (VIF) or Sound IF (SIF) or Digital TV (DTV)] allows the use of
   different filter shapes and bandwidths
·  All conventional ATV standards applicable by using DTV bandwidth window
   [Band-Pass (BP)] filter
·  Easy to use default settings for almost every standard provided, selectable via I2C-bus
·  Two 4 MHz reference frequency stages; the first one operates either as crystal
   oscillator or as optional signal input, the second one either as external signal input or
   as buffered reference frequency output
·  Stabilizer circuit for ripple rejection and to achieve constant output signals
·  Smallest size, simplest application
·  ElectroStatic Discharge (ESD) protection for all pins


Application

Analog and digital TV front-end applications for TV sets, recording applications, car mobile and personal computer cards


Pinout

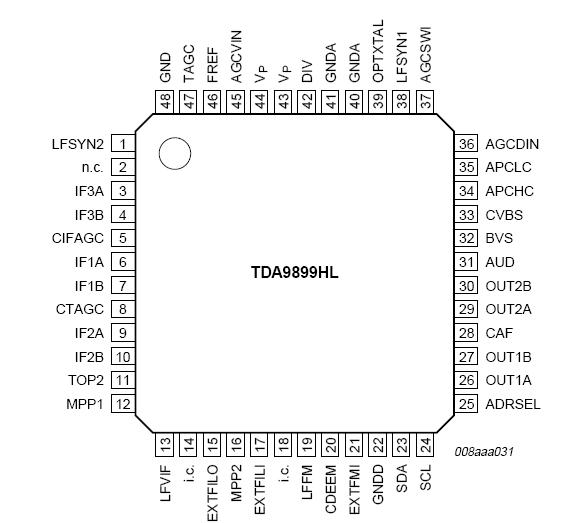

Connection Diagram


Specifications

Symbol Parameter Conditions Min Max Unit
VP supply voltage   - 5.5 V
Vn voltage on any other pin all pins except ground 0 Vp V
tsc short-circuit time to ground or VP - 10 S
Tstg storage temperature   -40 +150 °C
Tamb ambient temperature   -20 +70 °C
Tcase case temperature TDA9899HL (LQFP48) - 105 °C
TDA9899HN (HVQFN48) 115
Vesd electrostatic discharge voltage human body model - ±3000 V
machine model ±300
[1] Class 2 according to JESD22-A114.
[2] Class B according to EIA/JESD22-A115.


Description

The TDA9899 Integrated Circuit (IC) is suitable for Intermediate Frequency (IF) processing including global multistandard Analog TV (ATV), Digital Video Broadcast (DVB) and mono FM radio using only 1 IC and 1 to 3 fixed Surface Acoustic Waves (SAWs) (application dependent).
