TDSL51.0

Features: ·Low power consumption·Suitable for DC and multiplex operation·Evenly lighted segments·Grey package surface·Untinted segments·Luminous intensity categorized·Wide viewing angleApplication·Panel meters·Test- and measure- equipment·Point-of-sale terminals·Control unitsPinoutSpecifications ...

product image

TDSL51.0 Picture
See larger image
SeekIC No. : 004517110 Detail

TDSL51.0: Features: ·Low power consumption·Suitable for DC and multiplex operation·Evenly lighted segments·Grey package surface·Untinted segments·Luminous intensity categorized·Wide viewing angleApplication·P...

TDSL51.0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TDSL51.0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Low power consumption
·Suitable for DC and multiplex operation
·Evenly lighted segments
·Grey package surface
·Untinted segments
·Luminous intensity categorized
·Wide viewing angle


Application

·Panel meters
·Test- and measure- equipment
·Point-of-sale terminals
·Control units


Pinout

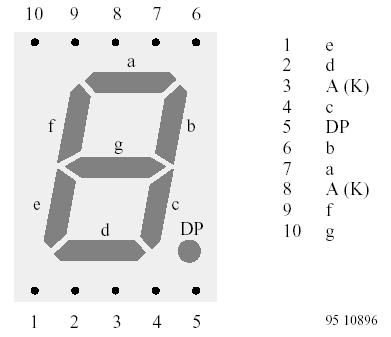

Connection Diagram


Specifications

Parameter Test Conditions Symbol Value Unit
Reverse voltage per segment   VR 6 V
DC forward current per segment   IF 15 mA
Peak forward current per segment   IFM 45 mA
Surge forward current per segment tp10s (non repetitive) IFSM 100 mA
Power dissipation Tamb45 PV 320 mA
Junction temperature   Tj 100
Operating temperature range   Tamb 40 to + 85
Storage temperature range   Tstg 40 to + 85
Soldering temperature t3 sec, 2mm below
seating plane		 Tsd 260
Thermal resistance LED junction/ambient   RthJA 180 K/W



Description

The TDSL51.0 series are 13 mm character seven segment low current LED displays in a very compact package.

The TDSL51.0 series displays are designed for a viewing distance up to 7 meters and available in high efficiency red. The grey package surface and the evenly lighted untinted segments provide an optimum on-off contrast.

All displays TDSL51.0 series are categorized in luminous intensity groups. That allows users to assemble displays with uniform appearence.

TDSL51.0 series Typical applications include instruments, panel meters, point-of-sale terminals and household equipment.
