TEA1095

Features: External power supply with power-down function Transmit channel with: externally adjustable gain transmit mute function Receive channel with: externally adjustable gain logarithmic volume control via a linear potentiometer receive mute function Duplex controller consisting of: sig...

product image

TEA1095 Picture
See larger image
SeekIC No. : 004517242 Detail

TEA1095: Features: External power supply with power-down function Transmit channel with: externally adjustable gain transmit mute function Receive channel with: externally adjustable gain logarithmic vo...

TEA1095 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA1095
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

External power supply with power-down function
Transmit channel with:
   externally adjustable gain
   transmit mute function
Receive channel with:
   externally adjustable gain
   logarithmic volume control via a linear potentiometer
   receive mute function
Duplex controller consisting of:
   signal envelope and noise envelope monitors for both channels with:
       externally adjustable sensitivity
       externally adjustable signal envelope time constant
       externally adjustable noise envelope time constant
   -  decision logic with:
       externally adjustable switch-over timing
       externally adjustable idle mode timing
       externally adjustable dial tone detector in receive channel
  voice switch control with:
       adjustable switching range
       constant sum of gain during switching
       constant sum of gain at different volume settings.


Application

Mains, battery or line-powered telephone sets
Cordless telephones
Answering machines
Fax machines
Hands-free car kits.


Pinout

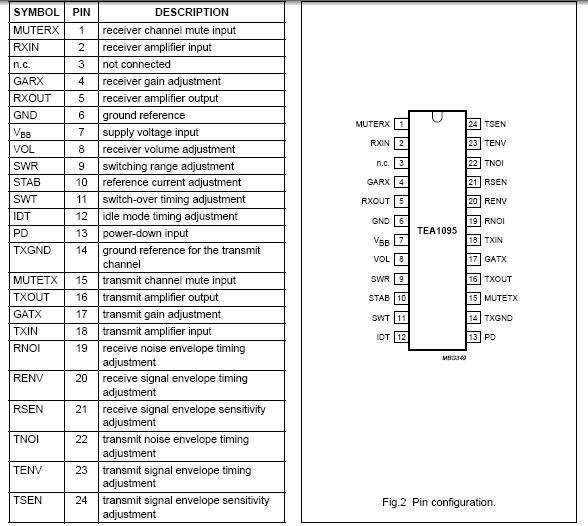

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Vn(max)
maximum voltage on all pins;
except pins VBB and RXIN		   VGND - 0.4 VBB + 0.4 V
VRIN(max) maximum voltage on pin RXIN   VGND - 1.2 VBB + 0.4 V
VBB(max) maximum voltage on pin VBB   VGND - 0.4 12.0 V
Tstg IC storage temperature   -40 +125 °C
Tamb operating ambient temperature   -25 +75 °C



Description

The TEA1095 is a bipolar circuit, that in conjunction with a member of the TEA106X, TEA111X families of transmission or TEA1096 transmission/listening-in circuits offers a hands-free function. It incorporates a transmit amplifier, a receiver channel amplifier and a duplex controller with signal and noise monitors on both channels.
