TEA2018A

Features: ·DIRECT DRIVE OF THE EXTERNAL SWITCHING TRANSISTOR ·POSITIVE AND NEGATIVE OUTPUT CURRENTS UP TO 0.5 A ·CURRENT LIMITATION ·TRANSFORMER DEMAGNETIZATION SENSING ·FULL OVERLOAD AND SHORT-CIRCUIT PROTECTION ·PROPORTIONAL BASE CURRENT DRIVING·LOW STANDBY CURRENT BEFORE STARTING (< 1.6 mA) ...

product image

TEA2018A Picture
See larger image
SeekIC No. : 004517309 Detail

TEA2018A: Features: ·DIRECT DRIVE OF THE EXTERNAL SWITCHING TRANSISTOR ·POSITIVE AND NEGATIVE OUTPUT CURRENTS UP TO 0.5 A ·CURRENT LIMITATION ·TRANSFORMER DEMAGNETIZATION SENSING ·FULL OVERLOAD AND SHORT-CIRC...

TEA2018A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEA2018A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·DIRECT DRIVE OF THE EXTERNAL SWITCHING TRANSISTOR
·POSITIVE AND NEGATIVE OUTPUT CURRENTS UP TO 0.5 A
·CURRENT LIMITATION
·TRANSFORMER DEMAGNETIZATION SENSING
·FULL OVERLOAD AND SHORT-CIRCUIT PROTECTION
·PROPORTIONAL BASE CURRENT DRIVING
·LOW STANDBY CURRENT BEFORE STARTING (< 1.6 mA)
·THERMAL PROTECTION


Pinout

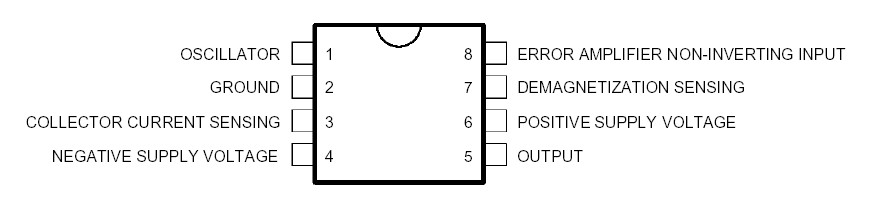

Connection Diagram


Specifications

Symbol
Parameter
Value
Unit
VCC+
VCC-
IO(peak)
II
Tj
Toper
Tstg		 Positive Supply Voltage
Negative Supply Voltage
Peak Output Current (duty cycle < 5%)
Input Current (Pin 3)
Junction Temperature
Operating Ambient Temperature Range
Storage Temperature Range
15
-5
±1
±5
+150
-20, +70
-40, +150
V
V
A
mA
°C
°C
°C



Description

The TEA2018Ais an 8-pin DIP low-cost integrated circuit designed for the control of switch mode power supplies.

Due to its current mode regulation, the TEA2018A facilitates design of power supplies with following features :
.High stability regulation loop
.Automatic input voltage feed-forward in discontinuous mode fly-back
.Automatic pulse-by-pulse current limitation Typical applications : VideoDisplay Units, TV sets, typewriters,microcomputersand industrialapplications

Where synchronization is required, use the TEA2019. For more details, see application note AN406/0591
