TEA6200

Features:

· No pre-tuned selection is required
· No LW/MW switching
· RF input is protected from static discharge from the aerial
· Electronic standby switch
· Voltage controlled oscillator for synthesizer tuning
· IF output providing level information for search tuning.
· No alignment required.

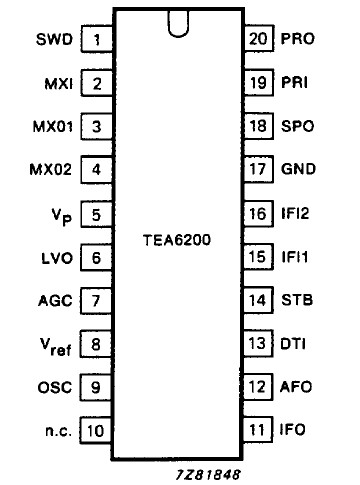

Pinout




Specifications

PARAMETER	SYMBOL	MIN.	MAX.	UNIT
Supply voltage	VP	-	12	V
Supply current	IP	-	70	mA
Total power dissipation	Ptot	-	850	mW
Operating ambient temperature range	Tamb	-30	+ 85
Storage temperature range	Tstg	-40	+ 150
Electrostatic discharge voltage	±Ves	-	10	kV

Description

The TEA6200 is an integrated AM upconversion receiver circuit with an IF of 10.7 MHz. Because of the high dynamic range of the RF prestage there is no tuned prestage. The whole selectivity is provided by crystal filters. The circuit is intended for use in AM radios with synthesizer tuning. The TEA6200 can handle RF signals up to 2 V RMS.
