Product Details

Description



Features:

· Source selector for three stereo and one differential stereo input for remote sources
· The differential stereo input works optional as a fourth stereo input and the common mode pin can be used as well as an additional mono input
· Interface for noise reduction circuits
· Interface for external equalizer
· Volume, balance and fader control
· Output at volume I for external booster
· Special loudness characteristic automatically controlled in combination with volume setting
· Bass and treble control
· Mute control at audio signal zero crossing
· Logic output to read mute status
· Fast mute control via I2C-bus
· Fast mute control via pin
· I2C-bus control for all functions
· Power supply with internal power-on reset
· Power-down indication.

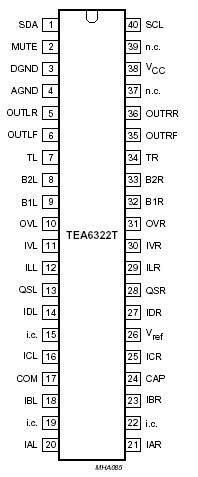

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VCC
 supply voltage   0 10 V
Vn voltage at pins 1, 2 and 5 to 40
to pins 3 and 4		   0 VCC V
Tamb operating ambient temperature   -40 +85
Tstg storage temperature   -65 +150
Ves electrostatic handling note 1



Description

The sound fader control circuit TEA6322T is an I2C-bus controlled stereo preamplifier for car radio hi-fi sound applications.
