TEA6422: Video ICs Audio Matrix Switch

TEA6422 Data Sheet

Get Latest Price

Part Number:: TEA6422
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

TEA6000 evaluate
DescriptionThe TEA6000 is designed as one kind of FM/IF system circuit intended for microcomputer ...
TEA6100 evaluate
Features: · 4-stage symmetrical IF limiting amplifier· Software selectable AM or FM input· Symmetr...
TEA6101 evaluate
Features: ` Ability to switch between up to four antennae` Switching signal derived from two signa...

Product Details

Quick Details

Operating Supply Voltage :	11 V	Supply Current :	8 mA
Maximum Operating Temperature :	+ 70 C	Package / Case :	PDIP-24
Packaging :	Tube

Description

Packaging : Tube
Maximum Operating Temperature : + 70 C
Supply Current : 8 mA
Operating Supply Voltage : 11 V
Package / Case : PDIP-24

Features:

·6 STEREO INPUTS
·3 STEREO OUPUTS
·GAIN CONTROL 0dB/MUTE FOR EACH OUT PUT
·CASCADABLE (2 DIFFERENT ADDRESSES)
·SERIALBUS CONTROLLED
·VERY LOWNOISE
·VERY LOWDISTORSION
·FULLY ESD PROTECTED

Pinout

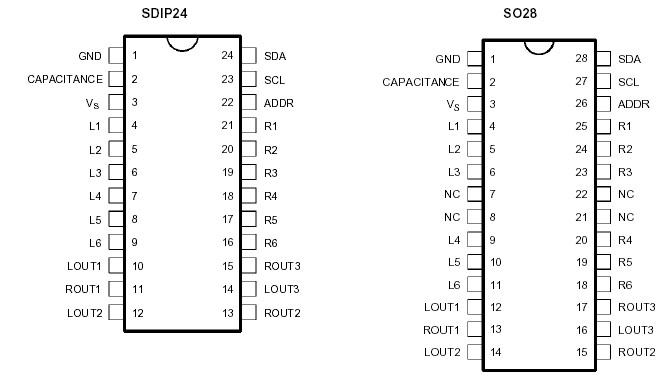

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CC	Supply Voltage	12	V
T_oper	Operating Temperature	0, + 70
T_stg	Storage Temperature	-20, + 150

Description

The TEA6422 switches 6 stereo audio inputs on 3 stereo outputs.

All the switching possibilities are changed through the I2C BUS.

Parameters:

Technical/Catalog Information	TEA6422
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Type	Video Switch
Voltage Supply Source	Single Supply
Voltage - Supply, Single/Dual (±)	8 V ~ 11 V
Circuit	2 x 6:3
On-State Resistance	-
Mounting Type	Through Hole
Package / Case	24-DIP
Packaging	Tube
Current - Supply	3mA
Operating Temperature	0°C ~ 70°C
Function	Audio Switch
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TEA6422 TEA6422
