TEW5720

Features: · Low cost.· Thriugh Hole and SMDPinoutSpecifications ELECTRICAL SPECIFICATION TEW5720 TEW5720-1 Application T1/CEPT T1/CEPT Line Impedance () (4 - 6)(4 - 5) 100 /120 75 100/120 75 Turns ratio (3 - 1) : (4 - 6)3 - 1) : (4 - 5) 1:1.351:1 1 : 1.261 : 1 Inductan...

product image

TEW5720 Picture
See larger image
SeekIC No. : 004517817 Detail

TEW5720: Features: · Low cost.· Thriugh Hole and SMDPinoutSpecifications ELECTRICAL SPECIFICATION TEW5720 TEW5720-1 Application T1/CEPT T1/CEPT Line Impedance () (4 - 6)(4 - 5) 100 /120 75...

TEW5720 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TEW5720
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Low cost.
· Thriugh Hole and SMD


Pinout

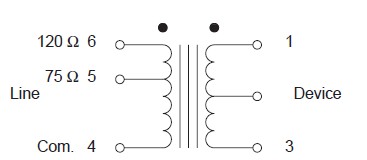

Connection Diagram


Specifications

ELECTRICAL SPECIFICATION TEW5720 TEW5720-1
Application   T1/CEPT T1/CEPT
Line Impedance () (4 - 6)
(4 - 5)		 100 /120
      75		 100/120
     75
Turns ratio (3 - 1) : (4 - 6)
3 - 1) : (4 - 5)		 1:1.35
1:1		 1 : 1.26
1 : 1
Inductance (mH) (4 - 6) > 0.50 > 0.5
Pulse Mask T1.408
G.703		 T1.408
G.703
Longitudinal Balance I.431 I.431
Dielectric Strength (V rms) 1500 1500



Description

TEW5720 is designed to be used as a transmit transformer in the ISDN primary rate access network with the following devices:

Dallas  DS2186
                DS2151Q
                DS2153Q
AT&T T7290
PMC-Sierra PM4341 T1X
