TFP7433

Features: · Support for 6-Bit as Well as 8-Bit Video Inputs, With On-Chip Dithering· FlatLinkTM Input Interface for Low EMI and Power· mini-LVDS Intra-Panel Interface Towards Column Drivers· DE-Only Mode of Operation· Tolerates Spread Spectrum Clock at the Input, With SSC Pass-Thru to the Outputs·...

product image

TFP7433 Picture
See larger image
SeekIC No. : 004518155 Detail

TFP7433: Features: · Support for 6-Bit as Well as 8-Bit Video Inputs, With On-Chip Dithering· FlatLinkTM Input Interface for Low EMI and Power· mini-LVDS Intra-Panel Interface Towards Column Drivers· DE-Only...

TFP7433 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
TFP7433
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Support for 6-Bit as Well as 8-Bit Video Inputs, With On-Chip Dithering
· FlatLinkTM Input Interface for Low EMI and Power
· mini-LVDS Intra-Panel Interface Towards Column Drivers
· DE-Only Mode of Operation
· Tolerates Spread Spectrum Clock at the Input, With SSC Pass-Thru to the Outputs
· Support for SSC at the Outputs by Using External SSC Generation
· Flexible Control Outputs With User-Programmable Timings
· Support for 2-Level and 3-Level Gate Drivers
· Optional Serial EEPROM for Fine Tuning Timing During Development
· Four Default Timing Sets Provided On-Chip
· Fail-Safe Circuit Detects Off-Spec Conditions and Generates Timing Signals Internally
· PowerPADTM TQFP Package
· Operating Voltage Range: 2.7 V to 3.6 V


Pinout

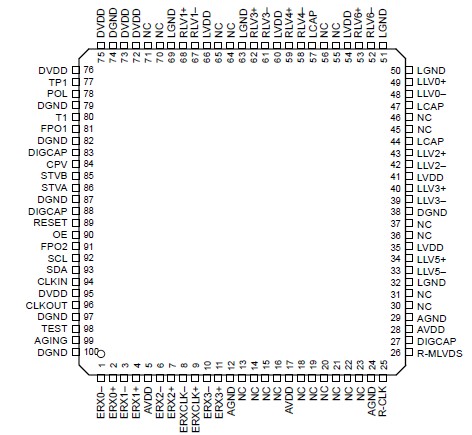

Connection Diagram


Description

The TFP7433 is a family of programmable timing controllers for TFT LCD panels supporting resolutions from XGA up to QXGA. The timing controllers reside on the panel and provide the interface between graphics controllers and the TFT-LCD system, routing video data and generating timing signals for the panel.

The host interface is FlatLink, which is a proven, low-power, and low-EMI serial interface. mini-LVDS, an advanced serial intra-panel interface, is used between the TFP7433 and the column drivers, resulting in improved EMI performance and lower power consumption.

Control outputs with user-programmable timings are available to control source and gate drivers. Additional control outputs are available to sequence the panel power supplies. The TFP7433 can be configured from an optional external serial EEPROM.
