Product Details

Description



Pinout

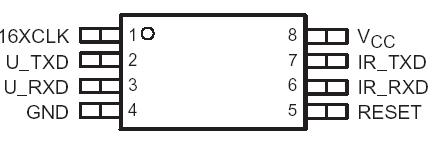

Connection Diagram


Specifications

Supply voltage range, VCC (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . 0.5 V to 6 V
Input voltage range at any input, VI . . . . . . . . . . . . . . . . . . . .  . . . .. . . .0.5 V to VCC + 0.5 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.5 V to VCC + 0.5 V
Operating free-air temperature range, TA, TIR1000 . . . . .. . . . . . . . . . . . . . .  . . .0°C to 70°C
TA, TIR1000I . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40°C to 85°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Case temperature for 10 seconds: SOP package. . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 260°C


Description

The TIR1000 serial infrared (SIR) encoder/ decoder is a CMOS device which encodes and decodes bit data in conformance with the IrDA specification.

A transceiver device is needed to interface to the photo-sensitive diode (PIN) and the light emitting diode (LED). A UART is needed to interface to the serial data lines.
