TISP61060P

SCRs

product image

TISP61060P Picture
SeekIC No. : 00696964 Detail

TISP61060P: SCRs

floor Price/Ceiling Price

Part Number:
TISP61060P
Mfg:
Bourns
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/27

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Package / Case : PDIP-8

Description

Breakover Current IBO Max :
Rated Repetitive Off-State Voltage VDRM :
Off-State Leakage Current @ VDRM IDRM :
On-State RMS Current (It RMS) :
Forward Voltage Drop :
Gate Trigger Voltage (Vgt) :
Maximum Gate Peak Inverse Voltage :
Gate Trigger Current (Igt) :
Holding Current (Ih Max) :
Mounting Style :
Packaging :
Package / Case : PDIP-8


Features:

· Dual Voltage-Programmable Protectors
    - Third Generation Design using Vertical Power Technology
    - Wide -5 V to -85 V Programming Range
    - High 150 mA min. Holding Current
· Reduced VBAT Supply Current
    - Triggering Current is Typically 50x Lower
    - Negative Value Power Induction Current Removes Need for Extra Protection Diode



Pinout

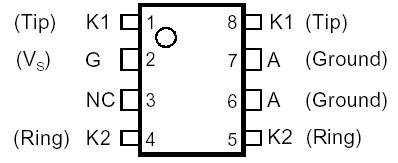

  Connection Diagram


Specifications

RATING SYMBOL VALUE UNIT
Repetitive peak off-state voltage, IG = 0, -40°C TJ 85°C VDRM -100 V
Repetitive peak off-state voltage, IG = 0, -40°C TJ 85°C VGKRM -85 V
Non-repetitive peak on-state pulse current (see Notes 1 and 2)
10/1000 µs
10/160 µs
2/10 µs
ITSP 30
45
50
A
Non-repetitive peak on-state pulse current (see Notes 1 and 2)
10/1000 µs
10/160 µs
2/10 µs
ITSM 6
1
Arms
Continuous on-state current (see Note 2) ITM 0.3 A
Continuous forward current (see Note 2) IFM 0.3 A
Operating free-air temperature range TA -40 to +85 °C
Storage temperature range Tstg -40 to +150 °C
Lead temperature 1,6 mm (1/16 inch) from case for 10 s TL 260 °C
NOTES: 1. Initially the protector must be in thermal equilibrium with -40°C TJ 85°C. The surge may be repeated after the device returns to its initial conditions.
             2. The rated current values may be applied either to the Ring to Ground or to the Tip to Ground terminal pairs. Additionally, both terminal pairs may have their rated current values applied simultaneously (in this case the Ground terminal current will be twice the rated current value of an individual terminal pair). Above 85°C, derate linearly to zero at 150°C lead temperature.



Description

The TISP61060 is a dual forward-conducting buffered p-gate overvoltage protector. It is designed to protect monolithic SLICs (Subscriber Line Interface Circuits), against overvoltages on the telephone line caused by lightning, a.c. power contact and induction. The TISP61060 limits voltages that exceed the SLIC supply rail voltage.

The SLIC line driver section TISP61060 is typically powered from 0 V (ground) and a negative voltage in the region of -10 V to -70 V. The protector gate is connected to this negative supply. This references the protection (clipping) voltage to the negative supply voltage. As the protection voltage will track the negative supply voltage, the overvoltage stress on the SLIC is minimised. (see Applications Information).

Positive overvoltages TISP61060 are clipped to ground by diode forward conduction. Negative overvoltages are initially clipped close to the SLIC negative supply rail value. If sufficient current is available from the overvoltage, then the protector will crowbar into a low voltage on-state condition. As the current subsides the high holding current of the crowbar prevents d.c. latchup.
