Product Details

Description



Features:

` VERYLOW POWER CONSUMPTION : 200A
` WIDE COMMON-MODE (UP TO VCC +) AND DIFFERENTIAL VOLTAGERANGES
` LOW INPUT BIAS AND OFFSET CURRENTS
` OUTPUT SHORT-CIRCUIT PROTECTION
` HIGH INPUT IMPEDANCE J-FET INPUT STAGE
` INTERNAL FREQUENCY COMPENSATION
` LATCH UP FREE OPERATION
` HIGH SLEW RATE : 3.5V/s

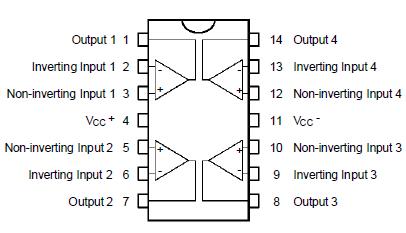

Pinout

Connection Diagram


Specifications

Symbol Parameter
TL064M,AM,BM
TL064I,AI,BI
TL064C,AC,BC
Unit
VCC Supply Voltage
±18
±18
±18
V
Vid Input Voltage - (note 3)
±15
±15
±15
V
Vi Differential Input Voltage - (note 2)
±30
±30
±30
V
Ptot Power Dissipation
680
680
680
mW
  Output Short-Circuit Duration (Note 4)
Infinite
Infinite
Infinite
Toper Operating Free-Air Temperature
Range


-55 to 125
-40 to 105
0 to 70

Tstg Storage Temperature Range
65 to + 150
65 to + 150
65 to + 150

Notes : 1. All voltage values, except differential voltage, are with respect to the zero reference level (ground) of the supply voltages where the zero reference level is the midpoint between VCC+ and VCC-.
2. Differential voltages are the non-inverting input terminal with respect to the inverting input terminal.
3. The magnitude of the input voltage must never exceed the magnitude of the supply voltage or 15 volts, whichever is less.
4. The output may be shorted to ground or to either supply. Temperature and/or supply voltages must be limited to ensure that the dissipation rating is not exceeded.


Description

The TL064, TL064A and TL064B are high speed J-FET input quad operational amplifiers. Each of these J-FET input operational amplifiers incorporates well matched, high voltage J-FET and bipolar transistors in a monolithic integrated circuit.

The device TL064, TL064A and TL064B features high slew rate, low input bias and offsetcurrents, andlow offset voltage temperature coefficient.
