General Description
TLC1551I General Description
The TLC1550x and TLC1551 are data acquisition analog-to-digital converters (ADCs) using a 10-bit, switched-capacitor, successive-approximation network. A high-speed, 3-state parallel port directly interfaces to a digital signal processor (DSP) or microprocessor (mP) system data bus. D0 through D9 are the digital output terminals with D0 being the least significant bit (LSB). Separate power terminals for the analog and digital portions minimize noise pickup in the supply leads. Additionally, the digital power is divided into two parts to separate the lower current logic from the higher current bus drivers. An external clock can be applied to CLKIN to override the internal system Dlock if desired.
The TLC1550I and TLC1551I are characterized for operation from 40°C to 85°C. The TLC1550M is characterized over the full military range of 55°C to 125°C.
TLC1551I Maximum Ratings
Supply voltage, VDD1, VDD2, and VDD3 (see Note 1) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6.5 V
Input voltage range, VI (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Peak input current (any digital input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Peak total input current (all inputs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30 mA
Operating free-air temperature range, TA: TLC1550I, TLC1551I . . . . . . . . . . . . . . .40°C to 85°C
Operating free-air temperature range, TA: TLC1550M . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Case temperature for 10 seconds: FK or FN package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: J or NW package . . . . . .260°C
Input voltage range, VI (any input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3 V to VDD + 0.3 V
Output voltage range, VO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to VDD + 0.3 V
Peak input current (any digital input) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±10 mA
Peak total input current (all inputs) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .±30 mA
Operating free-air temperature range, TA: TLC1550I, TLC1551I . . . . . . . . . . . . . . .40°C to 85°C
Operating free-air temperature range, TA: TLC1550M . . . . . . . . . . . . . . . . . . . . . .55°C to 125°C
Storage temperature range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65°C to 150°C
Case temperature for 10 seconds: FK or FN package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260°C
Lead temperature 1,6 mm (1/16 inch) from the case for 10 seconds: J or NW package . . . . . .260°C
TLC1551I Features
·Power Dissipation . . . 40 mW Max
·Advanced LinEPICETM Single-Poly Process
·Provides Close Capacitor Matching for
·Better Accuracy
·Fast Parallel Processing for DSP and mP Interface
·Either External or Internal Clock Can Be Used
·Conversion Time . . . 6 ms
·Total Unadjusted Error . . . ±1 LSB Max
·CMOS Technology
·Advanced LinEPICETM Single-Poly Process
·Provides Close Capacitor Matching for
·Better Accuracy
·Fast Parallel Processing for DSP and mP Interface
·Either External or Internal Clock Can Be Used
·Conversion Time . . . 6 ms
·Total Unadjusted Error . . . ±1 LSB Max
·CMOS Technology

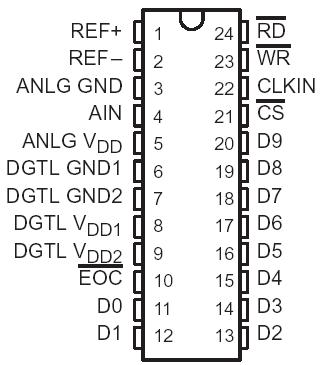

TLC1551I Connection Diagram
TLC1551I
PDF/DataSheet Download
- Datasheet: TLC1551I
- File Size: 142757 KB
- Manufacturer:
- Click here to Download
