Purchase TLE5205-2, In-stock TLE5205-2 From SeekIC.
MFG:N/A Package Cooled:NA/ D/C:09+
Part Number: TLE5205-2
MFG: N/A
Package Cooled: NA/
D/C: 09+
Description: The TLE 5205-2 is an integrated power H-bridge with DMOS output stages for driving ...
- Table of contents:
TLE5205-2
-
Suppliers
DataSheet
General Description
TLE5205-2 General Description
The TLE 5205-2 is an integrated power H-bridge with DMOS output stages for driving DC-Motors. The part isbuilt using the Infineon multi-technology process SPT® which allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the same monolithic structure.
Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked from just two control pins with TTL/CMOS compatible levels. The combination of an extremely low RDS ON and the use of a power IC package with low thermal resistance and high thermal capacity helps to minimize system power dissipation. A blocking capacitor at the supply voltage is the only external circuitry due to the integrated freewheeling diodes.
TLE5205-2 Maximum Ratings
40 < Tj < 150
| Parameter |
Symbol |
Limit Values |
Unit |
Remarks | |
|
min. |
max. | ||||
| Supply voltage |
VS |
-0.3 |
40 |
V |
- |
|
-1 |
40 |
V |
t < 0.5 s; IS > 5 A | ||
| Logic input voltage |
VIN1, 2 |
-0.3 |
7 |
V |
0 V < VS < 40 V |
| Diagnostics output voltage |
VEF |
-0.3 |
7 |
V |
- |
| Output current (cont.) |
IOUT1, 2 |
-5 |
5 |
A |
- |
| Output current (peak) |
IOUT1, 2 |
-6 |
6 |
A |
tp < 100 ms; T = 1 s |
| Output current (peak) |
IOUT1, 2 |
- |
- |
A |
tp < 50 s; T = 1 s; internally limitted; see overcurrent |
| Junction temperature |
Tj |
-40 |
150 |
- | |
| Storage temperature |
Tstg |
-50 |
150 |
- | |
| Junction case |
RthjC |
- |
3 |
K/W |
P-TO220-7-11/12, P-TO263-7-1 |
| Junction ambient |
RthjA |
- |
65 |
K/W |
P-TO220-7-11/12 |
|
- |
75 |
K/W |
P-TO263-7-1 | ||
| Junction case |
RthjC |
- |
5 |
K/W |
P-DSO-20-12 |
| Junction ambient |
RthjA |
- |
50 |
K/W |
P-DSO-20-12 |
TLE5205-2 Features
• Delivers up to 5 A continuous 6 A peak current
• Optimized for DC motor management applications
• Operates at supply voltages up to 40 V
• Very low RDS ON; typ. 200 m @ 25 per switch
• Output full short circuit protected
• Overtemperature protection with hysteresis and diagnosis
• Short circuit and open load diagnosis with open drain error flag
• Undervoltage lockout
• CMOS/TTL compatible inputs with hysteresis
• No crossover current
• Internal freewheeling diodes
• Wide temperature range; − 40 < Tj < 150
• Optimized for DC motor management applications
• Operates at supply voltages up to 40 V
• Very low RDS ON; typ. 200 m @ 25 per switch
• Output full short circuit protected
• Overtemperature protection with hysteresis and diagnosis
• Short circuit and open load diagnosis with open drain error flag
• Undervoltage lockout
• CMOS/TTL compatible inputs with hysteresis
• No crossover current
• Internal freewheeling diodes
• Wide temperature range; − 40 < Tj < 150

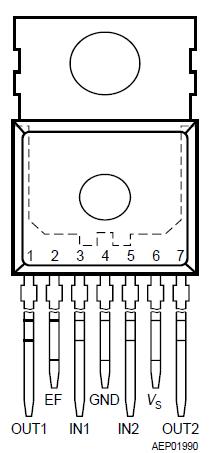

TLE5205-2 Connection Diagram
TLE5205-2
