Part Number: TLE5206-2
Package Cooled: 1880
Description: The TLE 5206-2 is an integrated power H-bridge with DMOS output stages for driving DC-Motors. The part...
- Table of contents:
TLE5206-2
-
Suppliers
DataSheet
General Description
TLE5206-2 General Description
The TLE 5206-2 is an integrated power H-bridge with DMOS output stages for driving DC-Motors. The part is built using the SIEMENS multi-technology process SPT® which allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the same monolithic structure.
Operation modes forward (cw), reverse (ccw), brake high and brake low are invoked from just two control pins with TTL/CMOS compatible levels. The combination of an extremely low RDS ON and the use of a power IC package with low thermal resistance and high thermal capacity helps to minimize system power dissipation. A blocking capacitor at the supply voltage is the only external circuitry due to the integrated freewheeling diodes.
TLE5206-2 Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | Remarks | |
| min. | max. | ||||
| Voltages | |||||
| Voltages | VS | 0.3 | 40 | V | |
| 1 | 40 | V | t < 0.5 s; IS > 5 A | ||
| Logic input voltage | VIN1, 2 | 0.3 | 7 | V | 0 V < VS < 40 V |
| Diagnostics output voltage | VEF | 0.3 | 7 | V | |
| Currents of DMOS-Transistors and Freewheeling Diodes | |||||
| Output current (cont.) | IOUT1, 2 | 5 | 5 | A | |
| Output current (peak) | IOUT1, 2 | 6 | 6 | A | tp < 100 ms; T = 1 s |
| Output current (peak) | IOUT1, 2 | A | tp < 50 µs; T = 1 s; internally limitted; see overcurrent | ||
| Temperatures | |||||
| Junction temperature | Tj | 40 | 150 | °C | |
| Storage temperature | Tstg | 50 | 150 | °C | |
| Thermal Resistances | |||||
| Junction case | RthjC | 3 | K/W | P-TO220-7-11/12, P-TO263-7-1 | |
| Junction ambient | RthjA | 65 | K/W | P-TO220-7-11/12 | |
| 75 | K/W | P-TO263-7-1 | |||
| Junction case | RthjC | 5 | K/W | P-DSO-20-12 | |
| Junction ambient | RthjA | 50 | K/W | P-DSO-20-12 | |
Note: Maximum ratings are absolute ratings; exceeding any one of these values may cause irreversible damage to the integrated circuit.
TLE5206-2 Features
• Delivers up to 5 A continuous 6 A peak current
• Optimized for DC motor management applications
• Operates at supply voltages up to 40 V
• Very low RDS ON; typ. 200 mΩ @ 25 °C per switch
• Output full short circuit protected
• Overtemperature protection with hysteresis and diagnosis
• Short circuit diagnosis with open drain error flag
• Undervoltage lockout
• CMOS/TTL compatible inputs with hysteresis
• No crossover current
• Internal freewheeling diodes
• Wide temperature range; − 40 °C < Tj < 150 °C
• Optimized for DC motor management applications
• Operates at supply voltages up to 40 V
• Very low RDS ON; typ. 200 mΩ @ 25 °C per switch
• Output full short circuit protected
• Overtemperature protection with hysteresis and diagnosis
• Short circuit diagnosis with open drain error flag
• Undervoltage lockout
• CMOS/TTL compatible inputs with hysteresis
• No crossover current
• Internal freewheeling diodes
• Wide temperature range; − 40 °C < Tj < 150 °C

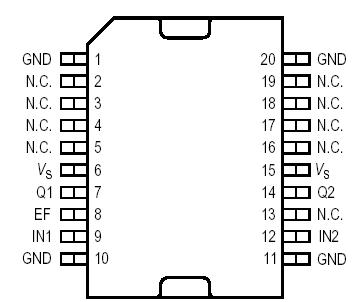

TLE5206-2 Connection Diagram
