TLE5212G

Features:

• Overload protection
• Short circuit protection
• Cascadeable serial diagnostic interface
• Overvoltage protection
• Overtemperature monitoring
• mC compatible input
• Electrostatic discharge (ESD) protection
• Open drain outputs


Application

• All kinds of resistive and inductive loads (relays, electromagnetic valves)
• mC compatible power switch for 12 V applications
• Solenoid control switch in automotive and industrial control systems

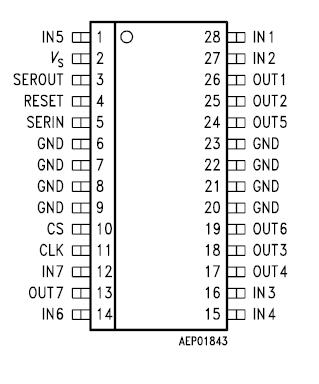

Pinout




Specifications

Tj = 40 °C to 150 °C
Parameter	Symbol	Values	Unit
Supply voltage	VS	0 . 45	V
Continuous drain source voltage	VDS	0.7 . 25	V
Input voltage	VIN	0 . 7	V
Operating temperature range Storage temperature range	Tj	40 . 150	°C
	Tstg	55 . 125
Output current	ID(lim)	Self limited	A
Output current at reverse poling	ID 5, 6	500	mA
	ID 1-4	50
Output current during clamping (see diagram)	ID(AZ) 5, 6	700	mA
	ID(AZ) 1-4	70
Thermal resistance junction-case1) junction-ambient	RthJC	19	K/W
	RthJa	60

Description

Sixfold Low-Side Switch in Smart Power Technology (SPT) TLE5212G with six independant inputs and six open drain DMOS output stages. The error feedback is done via a serial diagnostic interface.

The TLE5212G is protected by embedded protection functions (Z-diodes from output to ground) and is particularly suitable for automotive and industrial applications.
