TLE5224G2
-
Suppliers
DataSheet
General Description
TLE5224G2 General Description
This IC is specially designed to drive inductive loads (relays, electromagnetic valves). Integrated clamp-diodes limit the output voltage peak when switching off an inductive load.
For the detection of errors there are two status outputs, which monitor the following errors by logic levels:
- thermal overload monitoring,
- open and short load to ground in active an inactive mode,
- overloading of output (also shorted load to supply) in active mode.
TLE5224G2 Maximum Ratings
| for Tj = 40°C to 150°C | |||
| Parameter | Symbol | Values | Unit |
| Supply voltage | VS | - 0.3 ... + 60 | V |
| Supply voltage operational range | VS | + 4.8 ... + 45 | V |
| Continuous drain source voltage (OUT1, OUT2) | vds | 45 | V |
| Input voltage IN1, IN2, ENA | vin | - 0.3 ... + 6 | V |
| Status output voltage | vst | - 0.3 ... + 32 | V |
| Operating temperature range Storage temperature range |
Tj Tstg |
- 40 ... + 150 - 55 ... + 150 |
°C |
| Output current per channel |
|
self limited | A |
| Status output current | IST | - 5 ... + 5 | mA |
| Inductive load switch-off energy dissipation, single pulse Tj= 150°C |
EAS | 400 | mJ |
| Thermal resistance junction - case1 junction - ambient |
RthJC RthJA |
12 75 |
K/W |
TLE5224G2 Features
` Power limitation
` Overtemperature monitoring
` Overload protection
` Short circuit protection
` Diagnostic feedback
` Overvoltage protection
` C compatible input
` Electrostatic discharge (ESD) protection
` Overtemperature monitoring
` Overload protection
` Short circuit protection
` Diagnostic feedback
` Overvoltage protection
` C compatible input
` Electrostatic discharge (ESD) protection
TLE5224G2 Typical Application
` All kinds of resistive and inductive
loads (relays,electromagnetic valves)
` C compatible power switch for 12 and 24 V applications
` Solenoid control switch in automotive and industrial
control systems
loads (relays,electromagnetic valves)
` C compatible power switch for 12 and 24 V applications
` Solenoid control switch in automotive and industrial
control systems

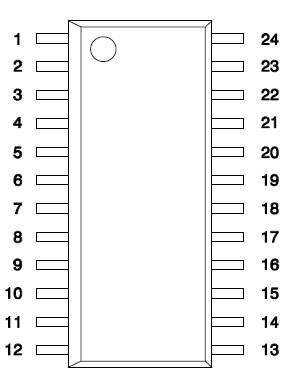

TLE5224G2 Connection Diagram
TLE5224G2
