Purchase TLE6208-3G, In-stock TLE6208-3G From SeekIC.
MFG:INFINEON
Part Number: TLE6208-3G
MFG: INFINEON
Description: The TLE 6208-3 G is a fully protected Triple-Half-Bridge-Driver designed specifically for automotive a...
- Table of contents:
TLE6208-3G
-
Suppliers
DataSheet
General Description
TLE6208-3G General Description
The TLE 6208-3 G is a fully protected Triple-Half-Bridge-Driver designed specifically for automotive and industrial motion control applications. The part is based on the Siemens power technology SPT® which allows bipolar and CMOS control circuitry in accordance with DMOS power devices existing on the same monolithic circuitry.
In motion control up to 2 actuators (DC-Motors) can be connected to the 3 halfbridgeoutputs (cascade configuration). Operation modes forward (cw), reverse (ccw), brake and high impedance are controlled from a standard SPI-Interface. The possibility to control the outputs via software from a central logic, allows limiting the power dissipation. So the standard P-DSO-14-package meets the application requirements and saves PCB-Board-space and cost. Furthermore the build-in features like Over- and Undervoltage-Lockout, Over-Temperature-Protection and the very low quiescent current in stand-by mode opens a wide range of automotive- and industrial-applications.
TLE6208-3G Maximum Ratings
| Parameter | Symbol | Limit Values | Unit | Remarks | |
| min. | max. | ||||
| Voltages | |||||
| Supply voltage | VS | 0.3 | 40 | V | - |
| Supply voltage | VS | 1 | - | V | t < 0.5 s; IS > 2 A |
| Logic supply voltage | VCC | 0.3 | 5.5 | V | 0 V < VS < 40 V |
| Logic input voltages (DI, CLK, CSN, INH) |
VI | 0.3 | 5.5 | V | 0 V < VS < 40 V 0 V < VCC < 5.5 V |
| Logic output voltage (DO) |
VDO | 0.3 | 5.5 | V | 0 V < VS < 40 V 0 V < VCC < 5.5 V |
| Output voltage (OUT 1-3) |
VOUT | 0.3 | 40 | V | 0 V < VS < 40 V |
| Currents | |||||
| Output current (cont.) | IOUT1-3 | - | - | A | internal limited |
| Output current (peak) | IOUT1-3 | - | - | A | internal limited |
| Limit is mentioned in the overcurrent section of operating range | |||||
| Temperatures | |||||
| Junction temperature | Tj | 40 | 150 | °C | - |
| Storage temperature | Tstg | 50 | 150 | °C | - |
TLE6208-3G Features
• Three Half-Bridges
• Optimized for DC motor management applications
• Delivers up to 0.6 A continuous, 1.2 A peak current
• RDS ON; typ. 0.8 W, @ 25 °C per switch
• Output: short circuit protected and diagnosis
• Overtemperature-Protection with hysteresis
and diagnosis
• Standard SPI-Interface/Daisy chain capable
• Very low current consumption (typ. 10 mA for power
and 2 mA for logic supply, @ 25 °C) in stand-by
(Inhibit) mode
• Over- and Undervoltage-Lockout
• CMOS/TTL compatible inputs with hysteresis
• No crossover current
• Internal clamp diodes
• Enhanced power P-DSO-Package
• Full compatibility to the TLE 5208-6

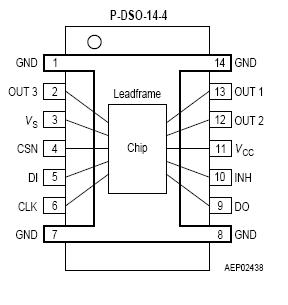

TLE6208-3G Connection Diagram
TLE6208-3G
PDF/DataSheet Download
- Datasheet: TLE6208-3G
- File Size: 100050 KB
- Manufacturer: Infineon
- Click here to Download
