TLK1201AIRCP

Product : Ethernet Transceivers
Number of Transceivers : 1
Maximum Operating Temperature : + 85 C
Packaging : Tray
Standard Supported : IEEE 802.3
Data Rate : 1.3 Gbps
Supply Voltage - Max : 2.7 V
Supply Voltage - Min : 2.3 V
Supply Current (Max) : 90 mA
Package / Case : HVQFP-64

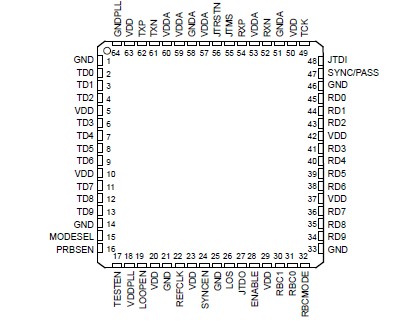

Pinout




Specifications

		TLK1201A/TLK1201AI
Supply voltage, VDD (see (2))		0.3 V to 3 V
Input voltage range at TTL terminals, VI		0.5 V to 4 V
Input voltage range at any other terminal		0.3 V to VDD +0.3 V
Storage temperature, Tstg		65°C to 150°C
Electrostatic discharge		CDM: 1 kV, HBM:2 kV
Characterized free-air operating temperature range	TLK1201A	0°C to 70°C
	TLK1201A	40°C to 85°C

Description

The TLK1201A/TLK1201AI/TLK1201AIRCP gigabit ethernet transceiver provides for ultrahigh-speed, full-duplex, point-to-point ata transmissions. The TLK1201AIRCP is based on the timing requirements of the 10-bit interface specification by the EEE 802.3 gigabit ethernet specification and is also compliant with the ANSI X3.230-1994 (FC-PH) fibre channel tandard. The device supports data rates from 0.6 Gbps to 1.3 Gbps.

The primary application of the transceiver is to provide building blocks for point-to-point baseband data ransmission over controlled impedance media of 50 or 75 . The transmission media can be printed-circuit oard traces, copper cables, or fiber-optical media. The ultimate rate and distance of data transfer is dependent pon the attenuation characteristics of the media and the noise coupling to the environment.

Parameters:

Technical/Catalog Information	TLK1201AIRCP
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Number of Drivers/Receivers	1/1
Type	Transceiver
Voltage - Supply	2.3 V ~ 2.7 V
Package / Case	64-HVQFP
Packaging	Tray
Protocol	IEEE 802
Drawing Number	296; 4147711; RCP; 64
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	TLK1201AIRCP TLK1201AIRCP 296 18299 ND 29618299ND 296-18299
