Part Number: TLP102



MFG: TOSHIBA

Package Cooled: SOP5

D/C: 06+

Description: The Toshiba TLP102 consists of a GaAℓAs light-emitting diode and an integrated high-gain, high-s...


Urgent Purchase

TLP102 General Description


The Toshiba TLP102 consists of a GaAℓAs light-emitting diode and an integrated high-gain, high-speed photodetector. The TLP102 is suitable for isolating input control signals to intelligent power modules. This unit is a 6-pin MFSOP.

The detector has a totem pole output stage to provide source drive and sink drive and features a built-in Schmitt trigger.

The detector IC has an internal shield that provides a guaranteed common-mode transient immunity of 10 kV/s.

The TLP102 is of an inverter logic type. A buffer logic version, the TLP106, is also available.
` Inverter logic type (totem pole output)
` Guaranteed performance over temperature: -40~85
` Power supply voltage: -0.5~20 V
` Input current: IFHL = 3 mA (Max.)
` Switching time (tpLH/tpHL): 400 ns (Max.)
` Common-mode transient immunity: 10 kV/s
` Isolation voltage: 3750 Vrms

TLP102 Maximum Ratings

CHARACTERISTIC
SYMBOL
RATING
UNIT
Forward Current
IF
20
mA
Peak Transient Forward Current (Note 1)
IFPT
1
A
Reverse Voltage
VR
5
V
Output Current 1 (Ta 25)
IO1
15/-15
mA
Output Current 2 (Ta = 85)
IO2
4.5/-4.5
mA
Peak Output Current
IOP
20/-20
mA
Output Voltage
VO
-0.5~20
V
Supply Voltage
VCC
-0.5~20
V
Operating Temperature Range
Topr
-40~85
Storage Temperature Range
Tstg
-55~125
Lead Solder Temperature (10 s)
Tsol
260
Isolation Voltage
(AC,1 min., R.H. 60%, Ta = 25) (Note 2)
BVs
3750
Vrms
Note 1: Pulse width PW 10 s, 500 pps.
Note 2: Product considered a two-terminal device: pins 1 and 3 shorted together and pins 4, 5 and 6 shorted together.

TLP102 Connection Diagram

TLP102  Connection Diagram

TLP102 datasheet

TLP1020
PDF/DataSheet Download

Find TLP102 Suppliers

  • ·TLP
  • STMicroelectronics
  • TRIPOLAR OVERVOLTAGE PROTECTION FOT TELECOM LINE
  • 345950 KB
  • TLP Datasheet Download
  • ·TLP1000A
  • TOSHIBA [Toshiba Semiconductor]
  • TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
  • 430291 KB
  • TLP1000A Datasheet Download
  • ·TLP1001A
  • TOSHIBA [Toshiba Semiconductor]
  • TOSHIBA PHOTOINTERRUPTER INFRARED LED + PHOTO IC
  • 418599 KB
  • TLP1001A Datasheet Download
  • ·TLP1002A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 425171 KB
  • TLP1002A Datasheet Download
  • ·TLP1003A
  • Toshiba
  •
  • 421349 KB
  • TLP1003A Datasheet Download
  • ·TLP1004A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1004A Datasheet Download
  • ·TLP1004AF
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1004AF Datasheet Download
  • ·TLP1005A
  • TOSHIBA [Toshiba Semiconductor]
  • INFRARED LED + PHOTO IC
  • 207152 KB
  • TLP1005A Datasheet Download

TLP102 Relative Products

  • TLP1018

    TLP1018

    The TLP1018 is designed as toshiba photointerrupter which has a GaAs infrared LED with high sensitive and high gain silicon photo IC.TLP1018 has nine features. (1)PWB direct mounting type. (2)Gap 5mm. (3)Resolution slit width 0.5mm. (4)Digital output (open c...

  • TLP1016

    TLP1016

    The TLP1016 is digital output photo-interrupters combining GaAs infrared LED with high sensitive and high gain Si photo IC. Features of the TLP1016 are:(1)side mounting type;(2)gap:3mm;(3)resolution:silt width 0.5mm;(4)built-in schmitt trigger circuit;(5)op...

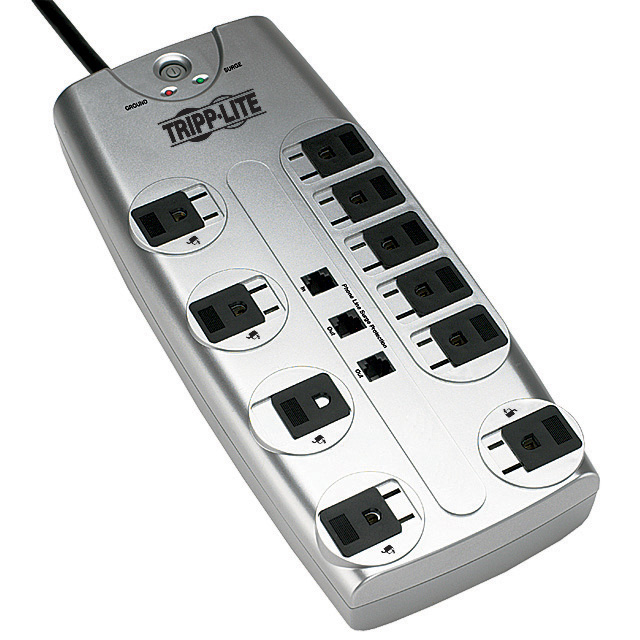

  • TLP1008TEL
